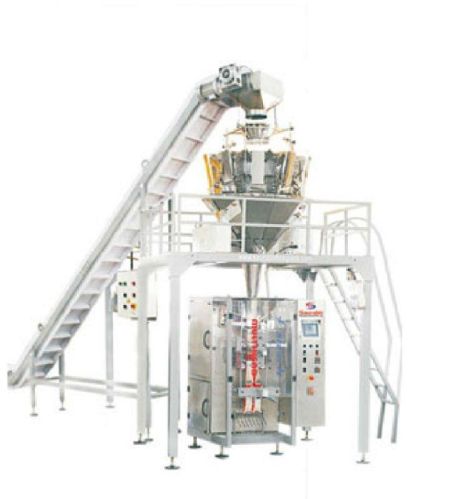

Kawach Multi Head Combination Weigher

We offer kawach multi head combination weigher.
listing description the machine is best for..
extruded snacks like kurkure & potato chips, farsan, chiwda, namkeen,
detailed description
the machine is best for...
extruded snacks like kurkure & potato chips, farsan, chiwda, namkeen, dry - fruits, pulses, grains, tea, sugar, seeds, frozen cut vegetable etc.
high speed and precision weighing is the uniqueness of multihead weigh filler. Kawach series is well for its pouch finish and sealing intactness which prevents leakage of inert gas from pouches and gives extended product shelf life.
additional systems
online batch coding device
inert gas flushing systems
3 side, 4 side, center sealing, guzzeting, block bottom etc. (optional)
batch cutting device
no material machine stop
no film machine stop
static charge eliminator for dust free sealing
available in gmp model for pharmaceutical users
'd' cut or euro slot or any shape which made to carry the bags easily.
specificationsfilling capacity (range) 5 gm to 5 kg
output speed 20 to 60 pouchesmin (depend on model)
packaging material laminated films
heating system hot bar induction, controlled through pid
control plc controlled
mode of operation pneumatic
reel core diameter 70 to 76 mm
roll holding pneumatic shaft
maximum roll weight 50kg
electricity required 420v, 3ph, 50hz
compressed air required 8 cfm at 6 bar pressure
machine weight 1400 kg(approx)
machine dimension 1800(w) x 1800(l) x 3350(h) mm
weighing head option 8 h, 10 h, 14 h
available in variety of models 5gm - 100gm, 20gm - 200gm, 5gm - 200gm, 100gm - 500gm, 200gm - 1kg, 500gm - 2kg, 1kg - 5kg.
