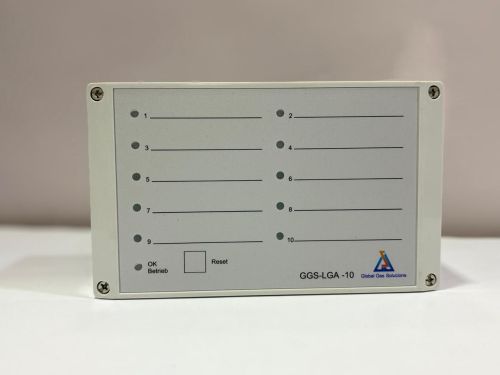

Low Gas Alarm System Using Contact Gauge

Low Gas Alarm System Using Contact Gauge

Reliable Gas Level Monitoring with Visual and Audible Alerts

Product Overview

Our Low Gas Alarm System is designed for accurate and dependable monitoring of gas levels in cylinders, tanks, and vessels. Featuring dual-color LED indicators alongside an audible buzzer and external relay activation, it provides clear alerts when gas levels fall below preset thresholds. The system supports both Normally Closed (NC) and Normally Open (NO) contact gauges, configurable on-site via the control panel for maximum flexibility.

Key Features

✔ Dual-Color LED Indicators

• Green LED signals normal gas level.

• Red LED signals low gas level.

✔ Flashing Red LED with Buzzer Alarm

• Activates when gas falls below the set threshold for immediate attention.

✔ External Relay Output

• Enables connection to additional alarms, buzzers, or automated shutdown systems.

✔ Acknowledgment Button

• Silences buzzer and changes flashing red LED to steady red until gas levels normalize.

✔ NC/NO Gauge Compatibility

• Configurable to work with both normally closed and normally open contact gauges.

✔ Easy Installation & Robust Performance

• Industrial-grade design with pluggable connectors for quick setup and reliable operation.

How It Works

Normal Operation

• Green LED ON indicates gas level within safe limits.

Low Gas Detection

• Flashing Red LED + buzzer ON triggers when gas drops below threshold.

• External relay activates connected alarms or systems.

Acknowledgment Mode

• Operator presses acknowledgment button; buzzer silences, red LED remains steady.

• System remains in this state until gas level is restored.

Auto Reset

• When gas returns to safe level, system automatically resets to green LED.

Technical Specifications

Input Compatibility: Normally Closed (NC) / Normally Open (NO) Contact Gauges

Outputs:

• Dual-Color LED (Green/Red)

• Built-in Buzzer

• External Relay (NO/NC contacts)

Power Supply: 220V, 50Hz ±10%

Enclosure Rating: IP65 (Dust and Water Resistant)

Operating Temperature: 20°C to 50°C

Applications

• LPG & CNG Storage Tanks

• Industrial Gas Monitoring

• Cryogenic Gas Level Alarms

• Medical Gas Supply Systems

• Chemical & Process Industries

Why Choose Our Low Gas Alarm System?

✔ Flexible Configuration to suit different gauge types (NC/NO).

✔ Simple and intuitive acknowledgment button for silencing alarms.

✔ Reliable multi-level alerts: visual, audible, and external relay activation.

✔ Designed for durability and harsh industrial environments.

✔ Easy installation with pluggable connectors.

Ordering Information

Product Code: GGS-LGA-XX-CG

Where XX = Number of Channels

02 | 04 | 06 | 08 | 10
