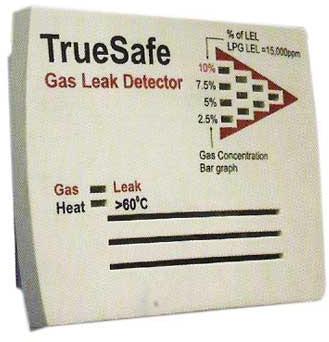

LPG Gas Leak Detector

We are well-reputed as one of the supreme LPG Gas Detector Alarm Suppliers in India. Our LPG Gas Leak Detector can detect LPG or other gas leaks before the gas density in air reaches dangerous levels. Additionally, it provides early warnings by detection of heat. Customers are also facilitated with the availability of the Wholesale Refrigerant Gas Leak Detector at the most profitable deals.

Salient Features

• Only detector available which is kitchen platform panel mountable.
• 100% more effective than competing products in terms of ability to detect LPG.
• In addition to gas leaks, it can detect heat, a useful feature for kitchens.
• Bar-graph gas concentration level indication (in models TS12F and TS230F).
• Models available with flasher (in models TS12F and TS230F).
• Models available with flasher and control valve (in models TS12FV and TS230FV).

Specification Improvement of product and its features is a continuous process. Hence, specification below are subject to change without any notice. Gases Detected : LPD, Natural Gas etc. as per model Power Supply : 203v +/- 10%, ac 50 Hz. For TS230 & TS230R +12VDC for TS12R Power Consumption : About 0.5 Watts Operating Temprature : -10⁰ to +70⁰Dimension : 111mm x 90mm x 40mm Alarm Type :

• Red LED Indication for Gas
• Yellow LED indication for Heat
• Relay Output (Optional)
• Audible Alarm (Optional)
• Sense Output for VDP (Optional)

Interfacing with Other Equipment Interfacing with other equipment Models TS230R & TS12R can be interfaced with other equipments like security panels, Video Door Phone systems etc. Interfacing is done with the help of relay ouyput which is in the from of NO & NC contacts. Refer to the following table for connection. Supply Voltage Connections

Supply Voltage	Wire Type	Connection To
230VAC	Two Pin Plug With Power Chord	5A Socket
+12VDC	Red Wire	DC Power Supply +ve
Ground	Black wire	Ground of Power Supply

Relay Connection (For Models with Relay Output)

Wire Type	Wire Colour	Connection To Equipment
NO	Yellow	Panic or Gas Sense Input
NC Blue	Blue	Panic or Gas Sense Input
Common	Brown	Ground

Sense Output Connection (For Models with P Suffix) Equvalant to Our earlier model LD12 Wire Colour : Connection to Video Door Phone Brown : To Be Continued Sense Input Model - Basic Models

S. No.	Item	Description
1	TS 230 XXXX	Operated on 230V AC 50Hz
2	TS 12 XXXX	Operated on 12V DC
3	TS 110 XXXX	Operated on 110V AC 60 Hz

Surfixes : XXXX Grades

S. No.	Item	Description
1	H	Used for Residential Purpose
2	C	Used for Commercial Purpose
