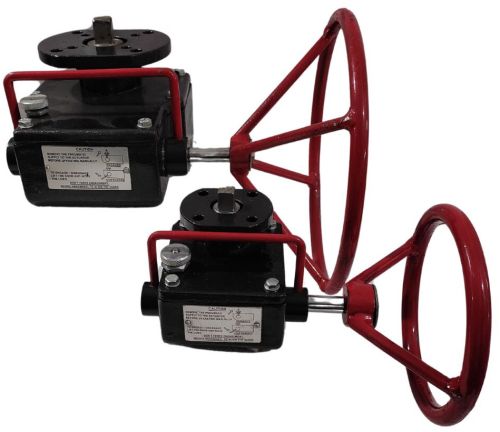

Cast Iron Manual Override (Series 330), Brand Name : Syncmate

Syncmate Manual Override Gearboxes are built to keep your operations moving, even when

power fails. Designed to work seamlessly with pneumatic, hydraulic, and back-drivable

electric actuators, they provide a dependable backup solution for valve control in the event

of lost air, gas, hydraulic fluid, or electricity.

Model: 331100T - 3315000T

Output torque: 60nm, 100nm, 250nm, 450nm, 750nm, 1000nm, 1500nm, 3500nm & 5000nm

Gear Ratio: 32:1, 36:1, 36:1, 38:1, 45:1, 60:1, 76:1, 72:1, 90:1 respectively

MOC Body: Cast Iron

Application: Suitable for all kinds of Quarter turn Pneumatic actuators

Operation with Handwheel

ISO 5211 mounting Flange; Clutch design for easy Switch; Special Body material

available; Worm Gear type; 60nm to 5000 Nm
