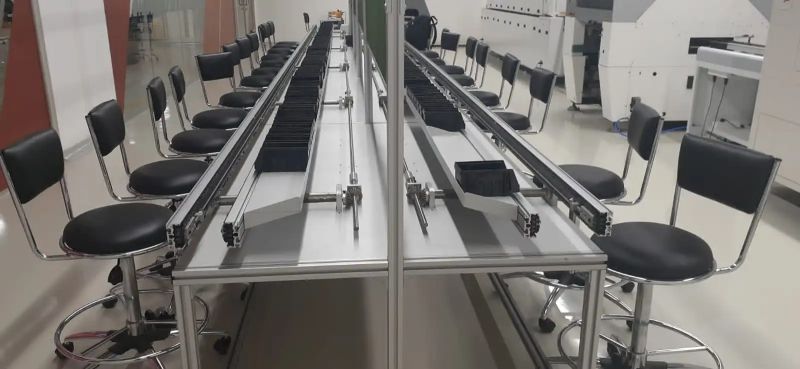

MI Line Motorized Double-Side Working Conveyor 7.3 Mtr (24)

₹ 2.65 Lakh / Meter

MOQ1 Meter
Brand NameEstovir
Conveyor TypeDouble-Side Working with Chain Conveyor
Conveyor Length7.3 m (24’) – customizable
PCB Width Range50 mm – 350 mm
Supply TypeManufacturer
Preferred Buyer Location All over the world

Company Information

Member Since 1 Year
Nature of Business Manufacturer
GST No. 06AANPP5476E1ZD

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

PCB Width Range50 mm – 350 mm
Chain TypeExtended pin with nylon roller (dia. 11 mm)
ChannelsSpecial aluminium extrusion with low friction
Working PlatformPowder-coated steel sheet
Brand NameEstovir
Conveyor Height2000 Mm (±25 Mm Adjustable)
Conveyor TypeDouble-Side Working with Chain Conveyor
Conveyor Length7.3 m (24’) – customizable
Structure MaterialAluminium (40×40) or Powder-Coated Steel Pipe (40×40)
Working Height900 mm (±25 mm adjustable)

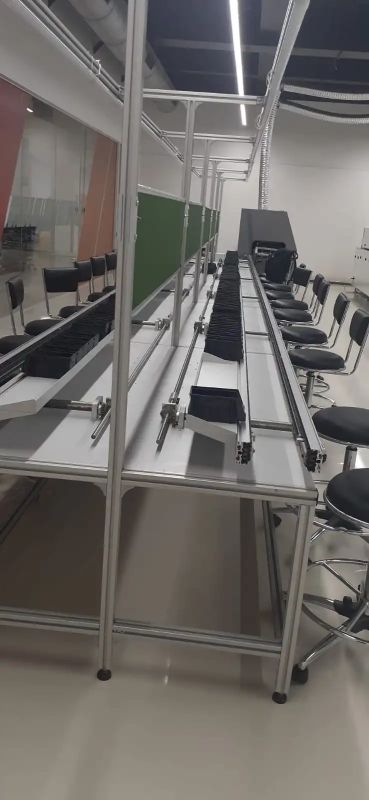

MI Line Motorized Double-Side Working Conveyor – 7.3 Mtr (24')

Overview
The MI Line Motorized Double-Side Working Conveyor – 7.3 Mtr (24') by Estovir Technologies is a high-performance chain-type conveyor for manual insertion (MI) PCB assembly lines. Designed for operators on both sides, it maximizes throughput and efficiency, ideal for transferring populated PCBs to wave soldering machines. PCBs move on a chain conveyor with secure edge guidance, allowing sequential dual-side component insertion. Adjustable channels accommodate various PCB sizes, while smooth transfer ensures consistent quality. The conveyor features a strong aluminium (40×40) or powder-coated steel frame, ergonomic working height (900 mm ±25 mm), adjustable bin trays, and variable speed control (0.75–1.7 m/min) via a 3-phase induction motor. Its ESD-safe, fire-resistant design supports high-volume production in automotive, medical, and consumer electronics industries.

Key Features

Double-Side Operation: Operators on both sides for balanced, high-throughput assembly; compatible with wave soldering.
Chain Conveyor with Adjustable Channels: Low-friction aluminium extrusion and nylon-roller chain; PCB guide channels adjustable from 50–350 mm.
Precision Speed Control: Variable speed 0.75–1.7 m/min; AC drive ensures synchronized operation.
Integrated Safety: Emergency stops, MCB protection, and power-failure interlock.
Workflow Accessories: Adjustable bin trays, optional LED lighting, magnetic steel display board.
Fire-Hazard-Free Build: Non-flammable, wood-free industrial structure.

Customization Options

Length & Height: Custom conveyor lengths (standard 7.3 m) and adjustable heights.
PCB Width: Guide channels adjustable from 50–350 mm.
Structure: Aluminium (lightweight) or powder-coated steel (heavy-duty).
Lighting & Power: Optional LED wiring, power sockets, and tool connections.
Accessories: Extra trays, tool sliders, display boards, shelving.

Applications

Manual Component Insertion: Dual-side assembly of resistors, capacitors, connectors.
PCB Inspection & Testing: Stable, ergonomic platform for quality control.
Wave-Soldering Preparation: Efficient transfer of fully assembled PCBs.
High-Volume Manufacturing: Suitable for automotive, consumer electronics, telecom, and medical devices.
ESD-Sensitive Assembly: Protects delicate components from electrostatic discharge.
Flexible Industrial Use: Adaptable for aerospace, defense, and precision manufacturing.

Why Choose Estovir Technologies' MI Line Conveyor

Proven Expertise: Decades of PCB assembly line automation experience.
Operator-Centric Design: Dual-side setup with organized bins, adjustable trays, and intuitive controls.
Reliable & Durable: High-quality aluminium or steel frame ensures long-lasting performance.
ESD-Safe & Fire-Resistant: Complies with global safety standards.
Comprehensive Support: Installation, calibration, maintenance, and spare parts.
Custom-Fit Solutions: Flexible options to match production layouts and operational needs.
