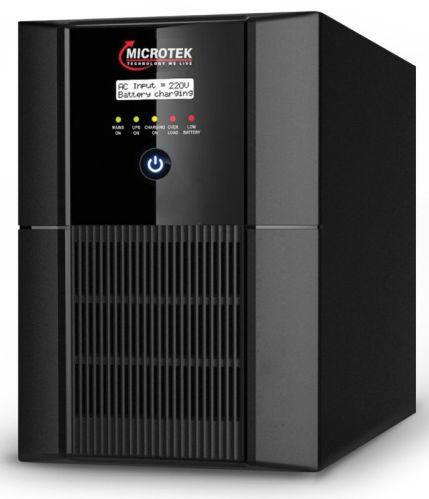

Microtek 3000+ MOSFET Jumbo UPS

Get Latest Price

Brand NameMicrotek
Output Waveform / Power FactorPure Sinewave / 0.8
Seperate O/P with TDRAvailable with 1-Min. TDR (For Air-ConditionTeypre Loads)
Gross Weight23.76 Kgs.
Supply TypeSupplier, Distributor
Preferred Buyer Location India only

View More Details

Send Enquiry

Company Information

Poweron

Nittuvalli, Davanagere, Karnataka

4.0/5

(1)

View Number

Member Since 1 Year
Nature of Business Distributor
GST No. 29AEJPV7461B1Z4

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Brand NameMicrotek
Nominal Battery Voltage24V DC
Battery ChargerBoost based PWM controlled multistage ATM (Automatic Trickle Mode) Charging
Maximum Charging Current17A(±2A) Default. Settable down to 5A via Switch Selection
Protections/DisplayLow Batt.Voltage,Batt.Overcharge/Reverse Polarity, Over Temp. Smart Overload Sense&Short Circuit/LED
Transfer Time-Mains to Batt. (UPS Model)<10ms
Narrow I/P Voltage Range (UPS Mode)(±10 V)180~260V
Recommended Battery Type / Battery AHTall-Tubular / Flat-Plate Lead Acid Batteries / (80AH-200AH)™
UPS Overload /Short Circuit Protection≥110%/ ≥300%
Input Brown Out Voltage (± 10V)100V
Mains Bypass /Switch OverRocker Bypass Switch Automatic from Mains to Backup and Backup To Mains
Dimensions (LxWxH)mm514x339x460
Capacity (KVA) / Rating (W)2.5/2000
Gross Weight23.76 Kgs.
Output Freq. / Voltage (Batt. Model)50Hz ± 0.2 Hz / 180~230V(±10V)
Std. /P Vol. Range (Inv. Mode) (£10V)100~270V
Efficiency (Battery Mode)>71%
Output Waveform / Power FactorPure Sinewave / 0.8
Seperate O/P with TDRAvailable with 1-Min. TDR (For Air-ConditionTeypre Loads)

Environmental Parameters: Operating Temperature: 0~45/ A°couCsti c Noise at 1 Mtr.: <60dB Relative Humidity: Max.95% non-condensing. Thermal Management: Integrated Cooling (Fan & Heat Sink)
