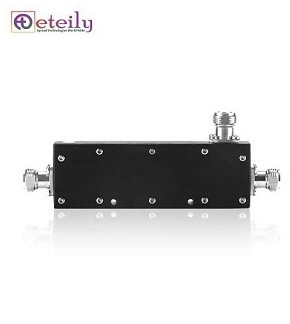

Mini 40Db Clamp Aluminum Optical Hybrid Tri-color RF Double Rj45 Coupler

This high-performance RF coupler is designed for seamless integration into various telecommunications systems, offering robust signal management and reliability. With a compact design and tri-color functionality, it’s ideal for indoor applications.

Key Specifications:

• Frequency Range:

  • 698-960 MHz
  • 1427-3800 MHz / 698-2700 MHz

• Variants:

  • Available coupling values: 6dB, 7dB, 8dB, 10dB, 13dB, 15dB, 20dB, and 30dB.

• Coupling Accuracy:

  • ±0.7 dB (6dB)
  • ±0.8 dB (7dB)
  • ±0.9 dB (8dB)
  • ±1 dB (10dB)
  • ±1.2 dB (13dB)
  • ±1.4 dB (15dB)
  • ±1.5 dB (20dB)
  • ±2 dB (30dB)

• Insertion Loss:

  • ≤1.8 dB (6dB)
  • ≤1.5 dB (7dB)
  • ≤1.2 dB (8dB)
  • ≤1 dB (10dB)
  • ≤0.7 dB (13dB)
  • ≤0.6 dB (15dB)
  • ≤0.4 dB (20dB)
  • ≤0.3 dB (30dB)

• Port Isolation:

  • ≥15 dB, ensuring minimal signal interference.

• VSWR:

  • ≤1.25, promoting efficient signal transmission.

• PIM Performance:

  • ≤-155 dBc @ 2×+43 dBm, ensuring low intermodulation distortion.

• Power Handling:

  • Up to 100W average power, suitable for high-power applications.

• Connectors:

  • 4.3-10-F, 50Ω for versatile connectivity options.

• Operating Temperature:

  • Ranges from -30℃ to +65℃, suitable for various environmental conditions.

• Size:

  • Dimensions: 119 mm x 51 mm x 28 mm (excluding connectors and brackets).

• Color:

  • Black finish for a sleek appearance.

Applications: This coupler is ideal for indoor RF signal distribution, ensuring reliable performance in telecommunications, data transmission, and other RF applications.
