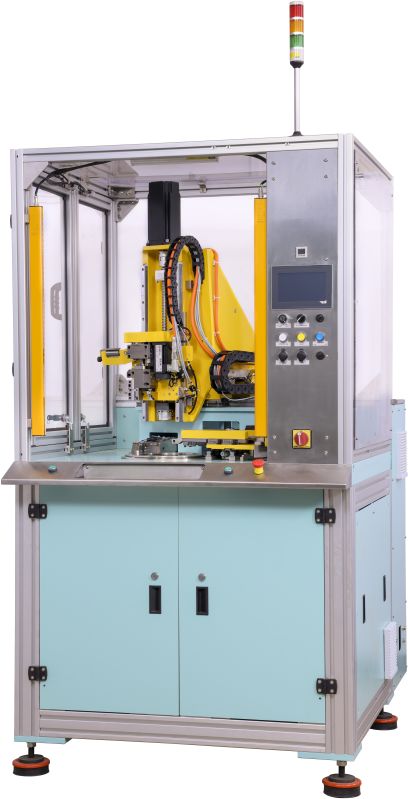

MMW 160 Mid-Drive Motor Winding Machine

Product Description

• Mid-Drive Motor Winding Machine
• A versatile needle winding machine for 2 & 3 wheeler traction motors and drone motor coils, featuring 5 winding and 4 routing axes, ideal for handling multiple wires & high fill-factor designs.

Features

• Single station needle type winding head which is designed for handling multi-strand wire winding.
• Nozzle tilting functionality with servo-controlled nozzle actuation allows inter/intra phase wire routing.
• Automatic wire grip and cut-through pneumatically actuated mechanisms eliminate operator interventions.
• 9 servo-controlled axes work in tandem to achieve the requisite movements required for winding multi-pole internal stator winding with multi-strand wire and high slot fill factor.
• A robust base frame with a welded base plate gives the machine base appropriate mass to dampen the vibrations and support the functional parts of the machine.
