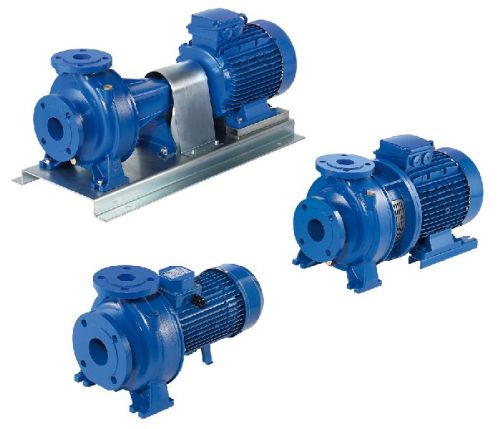

Motor Driven Centrifugal Pumps

3D Series

Motor Driven Centrifugal Pumps Standardized to EN 733 in Cast Ion

3D Series is the new EBARA range of close couple pumps (3D) and standardized pump manufactured according to EN 733 (3DS-3DP) with cast iron body and AISI 304 of AISI 316 stainless steel impeller.  3D, 3DS and 3DP pumps represent a versatile range suitable for a lot of applications and offer significant advantages in terms of reliability, efficiency and cost saving.

Technical Specifications

·         Max. working pressure : 10 bar

·         Max. liquid temperature range  :

+90oC for the standard version

            +110oC for the H-HS-HW-HSW versions

            +120oC for the E Version

·         Capacity up to 128 m3/hr

·         Total Head up to 71m (3D), up to 92.7 m (MD)*

*MD 32-250, 40-250, 50-250 to complete range.
