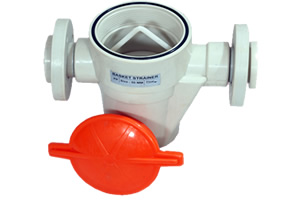

Contact SupplierManufacturer and Suppliers of Moulded Basket Strainer in PP.
Specifications:Moulded Basket Strainer in PP in many corrosive or sensitive process media straining applications, plastic is the preferred material of construction for a basket strainer. Moulded basket strainers are resistant to wide variety of corrosive acids and other aggressive materials. They will work in applications that may require a much more expensive exotic alloy - if one were easily available. Their plastic constructions ensure that they will not contaminate sensitive process media such as photographic chemicals and de-ionized water.
Features| Size | A±5 | ØB | C±3 | D±3 |
|---|---|---|---|---|
| 20 | 240 | 90 | 80 | 130 |
| 25 | 263 | 90 | 70 | 135 |
| 40 | 365 | 138 | 108 | 203 |
| 50 | 357 | 138 | 108 | 200 |
| 80 | 525 | 175 | 150 | 266 |
| 100 | 515 | 175 | 150 | 260 |
| 150 | 500 | 230 | 200 | 550 |
Material Specification
| Sr.no | Part Name | M.O.C |
|---|---|---|
| 1 | Body | Polypropylene |
| 2 | Cap/Cover | Polypropylene |
| 3 | 'O' Ring | Neoprene |
| 4 | Flange | Polypropylene |
| 5 | Basket/Filter | Polypropylene |
| 6 | Stubend | Polypropylene |
