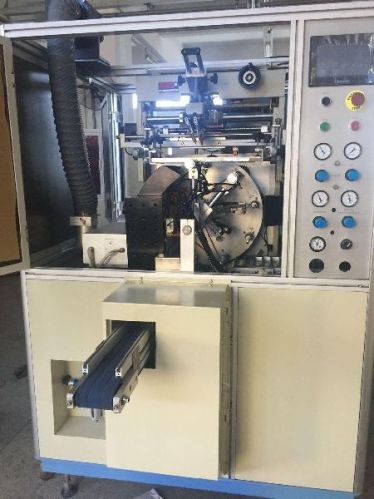

One Color Automatic UV Screen Printer With Photoelectronic Sensors

₹ 24.79 Lakh / Piece

MOQ1 Piece(s)
Automatic GradeAutomatic
Packaging TypeWhite
Brand NameLC
Plate Typescreen printing plate
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 14 Years
Nature of Business Manufacturer
Year of Establishment 1991

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

ConditionNew
Automatic GradeAutomatic
Power1-5kw
Warrenty1 Year
Brand NameLC
Plate Typescreen printing plate
After-Sales Service ProvidedEngineers available to service overseas
Number Of FlowerAutomatic Screen Printing Machine
Availability1000-2000kg
Packaging TypeWhite
Country of Origin380V
Max printing speed3200 pcs/hour
Machine cover area2600 mm x 3600 mm x 2000 mm
Power supply380 V ,3 phase ,50Hz
Power consumption4.5 kw
Height for bottle20 mm < height < 200 mm
Air Consumption100 liter/min
Diameter for bottle10 mm < diameter < 120 m
Machine weight1100 kg
Air supply5 to 7 bar
UV Lamp Power4 KW
Main machine size1500 mm x 1180 mm x 1900 mm
Printing area236 mm x 170 mm

Description:

One color automatic UV screen printer with photoelectronic sensors

Japan Fuji servo, German Leuze color sensor and Japan Hitachi PLC system,And the German Leuze color sensor is used to recognized the print position.

Product Description

One color automatic UV screen printer with photoelectronic sensors video

https://youtu.be/Rt2jCnzssEQ

Advantages:

1.Specially design for circular shaped applications such as tubes,caps,and injectionmolds bottles.

2.Servo optical fiber indexing system.It is possible to do multi-colors printing and overpint for some applications
3.The machine integrates automatic feeding device, flame treatment, automatic direction detect ice device and UV curing system and so on

4. It combines mechanical driven with pneumatic driven, and LED display. The maximun printing capacity of the machine is 3200pcs/hr.
5. This system is equipped with various warning devices such as low pressure and Overloading.The sensor can detect “no product,no printing”.
6. The electrical components and control system adopt from Japan and Germany, ensure good printing quality

7. We provide machine design and construction services for special aplication

Fitting:

1. One set fixture for the product

2. One screen frame

3. One operation manual.
