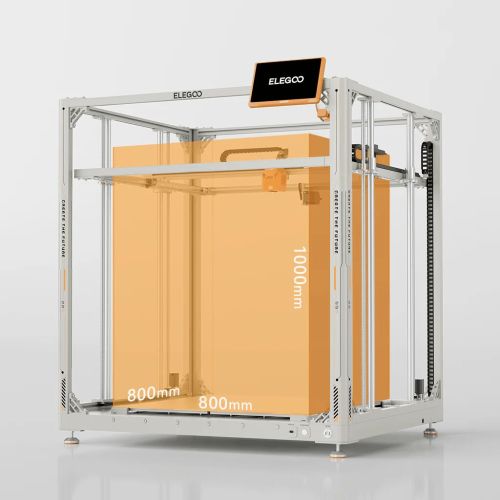

OrangeStorm Giga – Technical Specifications (Tabular Format)
| Product Model | OrangeStorm Giga |
| Printing Technology | FDM (Fused Deposition Modeling) |
| Frame Material | CNC machined aluminium extrusion |
| Voltage | 100–120 VAC / 220–240 VAC, 50/60 Hz |
| Power Consumption | 1,530 W (single head) + 100 W per additional head |
| File Transfer Method | USB, LAN, WiFi |
| Supported File Formats | STL, OBJ |
| UI Languages | English, French, German, Russian, Italian, Spanish, Japanese, Chinese |
| Build Volume | 800 × 800 × 1000 mm |
| Printing Platform Size | 820 × 820 mm (4 × independent 410 × 410 mm PEI plates) |
| Machine Size | 1,224 × 1,164 × 1,425 mm |
| Package Size | Bottom + XY: 1,350 × 1,215 × 420 mm Z-Axis: 1,350 × 1,215 × 350 mm |
| Max Machine Movement | 1,224 × 1,520 × 1,570 mm |
| Max Nozzle Temp. | 300°C |
| Max Bed Temp. | 100°C (ambient temperature: 25°C) |
| Filament Compatibility | PLA, PETG, TPU |
| Net Weight | 104 kg |
| Gross Weight | 145 kg |
| Resume Printing | Yes |
| Filament Detection | Yes |
| Max Tool Head Speed | 300 mm/s |
| Max Tool Head Acceleration | 5,000 mm/s² |
