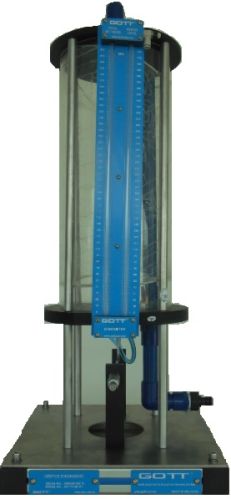

Orifice Discharge Trainer, Feature : Stable Performance

Orifice Discharge Trainer is designed to determine the discharge coefficient of the orifice meter.There are many situations in the engineering field where it is necessary to know the flowrate in a pipe. There are various flow-measuring devices that all determine the flowrate in a pipe but the most common is the obstruction-type flowmeter. Obstruction flowmeters operate on the idea that a decrease in flow area in a pipe causes an increase in a velocity that in turn decreases the pressure.

Features:

• Cylindrical clear acrylic tank with orifice fitted in base
• Five interchangeable orifices
• Pitot tube and wire on micrometer to measure jet velocity and diameter
• Quick release fitting for easy connection to hydraulics bench
