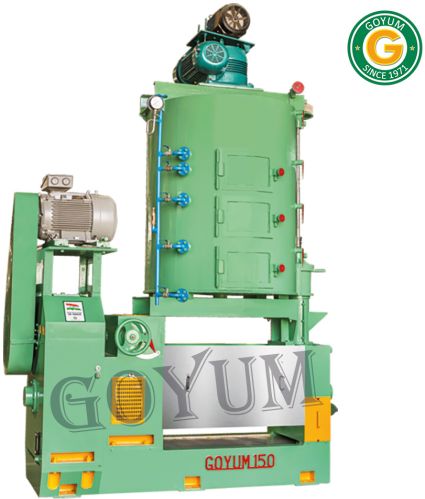

Peanut Oil Extraction Machine / Earthnut Oil Extraction Machine

₹ 26.35 Lakh - ₹ 29.33 Lakh / piece

Driven TypeElectric
CertificationISO 9001:2008 Certified, CE Certified, ISO 14001 : 2015 Certified
SpecialitiesHigh Performance
Machine Weight4800 Kgs (With Three Stage Kettle),5500 Kgs (With Four Stage Kettle)
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Company Information

4.5/5

Member Since 15 Years
Nature of Business Manufacturer
GST No. 03AAVPG4261E1ZV

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Country of OriginIndia
Total Carbohydrate1 Year Against Manufacturing Defects
Machine Weight4800 Kgs (With Three Stage Kettle),5500 Kgs (With Four Stage Kettle)
Number Of FlowerCommercial Expeller
Packaging TypeWooden Box
Capacity15 – 17 Ton In 24 Hours,250 – 300 Machines Annually
Length8’6
UsageMulti Seed Oil Extraction
Operating TypeSemi Automatic
ConditionNew
Brand NameGOYUM
Driven TypeElectric
CertificationISO 9001:2008 Certified, CE Certified, ISO 14001 : 2015 Certified
SpecialitiesHigh Performance
Breadth4'7
Chamber SizeDia 7.5” X Dia 6.5” X 45” Long
Expeller Motor3 Phase, 40 HP, 1440 RPM
Height13 feet (With Four Stage kettle), 11.5 feet (With Three Stage Kettle)
Kettle MotorFor 3 Stage: 3 Phase, 5 HP, 1440 RPM, For 4 Stage: 3 Phase, 7.5 HP, 1440 RPM
ModelGOYUM 150

Peanut Oil Extraction Machine / Earthnut Oil Extraction Machine is used to extract oil from various types of edible oil seeds as well as non-edible oil seeds & nuts.

Features:

\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r

\r Bodies and Base \r	\r Fabricated from Mild steel \r
\r Gearbox \r	\r Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel. \r
\r Chamber \r	\r Steel Casting of Four Sections. Horizontally fitted \r Size: Ø 7.5” X Ø 6.5” X 45” Long. \r
\r Worm Assembly \r	\r Hard Faced along with Discharge Ring and Compression Ring \r
\r Main Worm Shaft \r	\r Can be withdrawn out without Disturbing the Gear Box. \r
\r Kettle \r	\r 3 or 4 stages with Steam Jackets of Ø 48” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. \r
\r Cake Thickness \r	\r Can be Adjusted on Running Machine. \r
\r Crammer Shaft \r	\r For extra Cramming of the Seed or Cake in the Feed Body. \r
\r Oil & Oil Cake \r	\r Superior Quality \r
\r Maintenance \r	\r Minimum \r
\r Crushing Capacity \r	\r Differs with the density of oilseeds & nuts and quantity of oil in it. \r

Additional Information

Payment Terms L/CT/T
Port of DispatchMumbai / Mundra
Packaging DetailsWrapped in polythene sheet & then Packed in Quality Wooden Box (For Export)
Delivery Time15 – 20 days, but confirmed delivery time will be provided at the time of confirmation.
