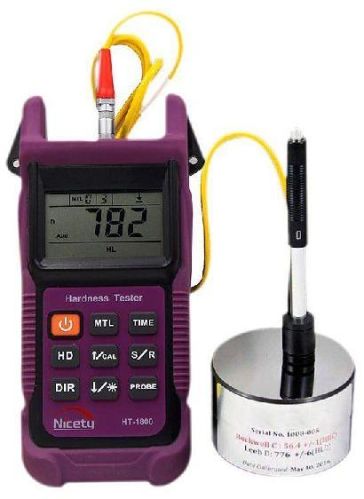

Portable Hardness Tester

State of the art, digital portable hardness tester is designed to test the hardness of large hard metal parts. Clean crisp display shows the incredible functions that can only be found on this new portable hardness tester such as auto-probe detection, auto direction detector, single and multi-point calibration make the HT-1800 the most versatile portable hardness tester in the industry.



The HT-1800 portable hardness tester can perform tests that easily convert to the most popular hardness scales, including Rockwell, Brinell, Vickers, Shore, etc.



Easy to use keypad operation

Auto identification of Impact Device

Large LCD display with back light

Automatic conversions to: Brinell, Rockwell B & C, Vicker and Shore

Automatic mean value

Battery Indicator

Memory capacity (100 groups)

 Standard Test Method for Hardness Testing: ASTM A956



Measuring range:  HLD（200-960）

             HRC（19.8-68.5）

HRB（13.5-100）

HB（30-651）

HV（80-976）

HS（26.4-99.5）

σb（375-2639）

Accuracy: ≤6HLD (HLD=800)

Repeatability: ≤6HLD (HLD=800)

Resolution: 1HL, 1HV, 1HB, 0.1HRB, 0.1HRC, 0.1HS

Materials: steel & cast steel, alloy tool steel, stainless steel, grey cast iron, spheroidal iron, cast aluminum, brass, bronze, wrought copper alloy.

Impact devices: D (optional impact devices: C/G/DC/DL)

Memory capacity: 100 groups

Battery type: 4 * 1.5V, AAA alkaline

Operating temperature: -10 to 50 degrees C

Dimensions: 90*176*43mm

Shipping weight: 4.5KG



Base instrument

Impact device D

Calibrated test block

Custom carry case

Cleaning brush

Operation manual



Impact devices; C, G, DC, DL



Load the impact body

Place the impact body on your test piece

Push the button to begin testing and obtain reading
