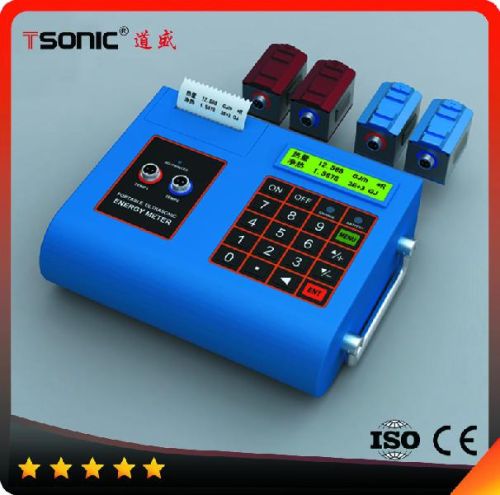

Portable Ultrasonic Flow Meter

₹ 40,050 / Set

MOQ1 Set(s)
Communication Interface: RS485Power Supply:built-in battery/ charger
Signal Output: 4~20mA, OCT, relayPrinter: built-in thermo printer
Pipe Size: DN25~DN6000Liquid Temperature: -30~160℃
Item: ultrasonic flow meterAccuracy:1%
Data Logger:2G SD cardWorking Temperature: -20~60℃
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

Pipe Size: DN25~DN6000Liquid Temperature: -30~160℃
Data Logger:2G SD cardWorking Temperature: -20~60℃
Item: ultrasonic flow meterAccuracy:1%
Signal Output: 4~20mA, OCT, relayPrinter: built-in thermo printer
Communication Interface: RS485Power Supply:built-in battery/ charger

Tsonic portable ultrasonic flow meter tuf-2000p
main features
portable handheld, easy carrying
high accuracy measuring
linearity: better than 0.5%, repeatability: better than 0.2%, accuracy: better than ±1%
small size, light weight
non-intrusive, clamp-on transducer, no pressure drop, no pipe disturbance.
Wide measuring range
several types transducer for selection, measuring pipe size from dn25mm to dn6000mm.
Large lcd display
display instantaneous flow, accumulated flow (positive, negative and net), velocity, working status etc.
Built-in 24k data logger, store over 2000 lines measuring data
built-in lithium battery can support 12 hours working time.
