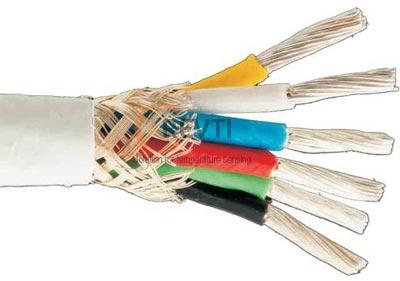

PTFE Insulated Wires & Cables

Revti Electronics Industires makes, all type of PTFE Insulated Wires & Cables are approved and meets the requirement of Indian Defence Standard JSS 51034.92. Equivalent standards are MIL-W-16878 & BS 3G210 apart from Defence approval. REVTI has got complete inhouse test facilities, for testing these cables as per relevant standards. PTFE Insulated Wires & Cables, conform to the specifications, JSS 51038, MIL-DTL-27500, BS 3G210. Color Options :

• Total Flame resistance
• High insulation & specific resistance
• High strain & abrasion resistance
• Negligible Dielectric loss, remains stable in wide frequency and temperature range.
• Water absorption is less than 0.01%
• Total weather & Ozone resistance
• Resistant to acids, alkalis, solvents, synthetic liquids & oils.
• Non Toxic, Non flammable
• High resistance to Radiation.
• The wires made of PTFE insulation are light weight, compact have excellent thermal stability and Immune to ageing fungus & water.

• Conductor : Specially formed , concentric silver / nickel plated soft annealed copper. As per ASTM-B-298 / ASTM B 355 Single / Multi stranded.
• Insulation : PTFE, Spirally wrapped & fused
• Voltage grade : 250V (ET), 600V(E), 1000 V (EE), Corona resistant high voltage grades upto 10KV rms
• Specifications : JSS51034-92, MIL-W-16878 NEMAHP3, BS 3G210
• Working Temp : Silver plated 200 C, Nickel plated 260 C
