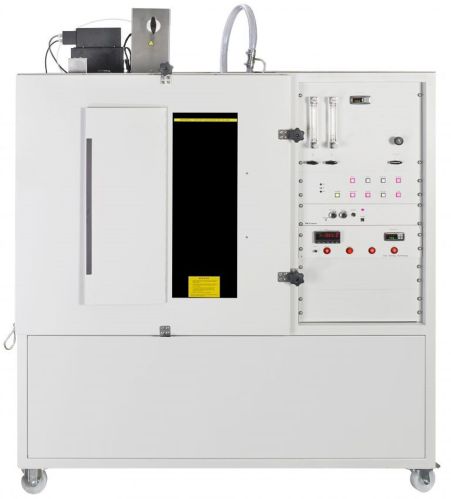

Railway Flammability & Smoke Density Testing Machines EN 45545-2 Kdm Global

Railway Flammability & Smoke Density Testing Machines – EN 45545-2 | KDM GlobalProduct Overview

• Advanced fire testing systems for railway materials as per EN 45545-2 fire safety requirements

• Specially designed to assess flammability, smoke emission, and toxic gas release of interior components used in rolling stock

• Provides comprehensive evaluation for heat release, flame spread, smoke visibility, and gas toxicity

• Suitable for certification, compliance, and R&D in railway fire protection

Key Features

• Combined system includes:

  • Cone Calorimeter (ISO 5660) for heat release rate and mass loss

  • Smoke Density Tester (ISO 5659-2) with optical density analysis

  • Toxicity Gas Analyzer (NCD 1409) for harmful gas emission measurement

  • Small Flame Ignitability Tester (ISO 11925-2) for surface flammability

• Fully compliant with EN 45545-2 and ISO test methods

• Real-time test monitoring and automated result logging

• High-resolution sensors for accurate, repeatable results

• User-friendly control software with multilingual interface

Technical Specifications

• Heat flux: Adjustable 15–100 kW/m² for cone calorimeter

• Smoke density: Measured via dual-beam photometric system (light extinction method)

• Gas detection: CO, CO₂, HCN, SO₂, NOx via calibrated FTIR or electrochemical sensors

• Mass loss resolution: Up to 0.01 g

• Sample size: Compatible with standard railway material dimensions

• Output: Graphs, data logs, and reports in PDF/Excel formats

Applications

• Testing railway coach components such as:

  • Seats, insulation, panels, flooring, cables, and ducting

• Ensures compliance with EN 45545-2:2020 – Requirement Sets R1–R26

• Validates materials for low flammability, minimal smoke, and non-toxic gas emission

• Used in new material development, certification, and batch testing

Industries Served

• Railway coach manufacturers and component suppliers

• Fire testing and flammability research labs

• Government and private railway authorities

• Academic institutions for fire safety research

• Independent testing and certification agencies

Why Choose KDM Global

• Complete in-house manufacturing of fire testing systems for railway applications

• Equipment trusted across India and global markets for EN 45545-2 compliance

• Turnkey solutions with installation, commissioning, and training

• Remote assistance, technical support, and annual calibration services

• Custom configurations and accessories available upon request
