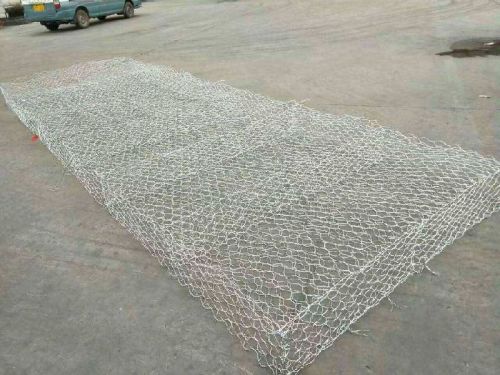

Reno Mattress

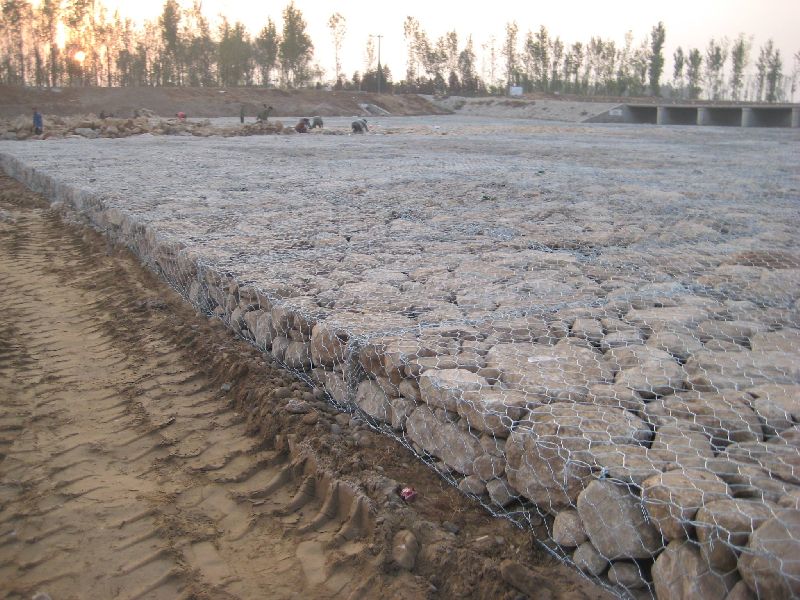

Reno Mattress, also known as gabion cushion and Gabion cushion, refers to a cushion shaped engineering component composed of machine-made double twisted hexagonal metal mesh with a thickness far less than the length and width. The Reynolds pad is connected into one after filling materials such as block stone are loaded into it, which becomes an anti scour structure to be used for water conservancy embankment, bank slope, apron, etc., and has the advantages of flexibility and adaptability to the foundation.

The difference between Renault mat and Gabion net cage and Gabion net cage is that the height of the mat is low and the structural mode is flat and large; The diameter of coated steel wire is smaller than that of gabion. Generally, there are two types: double diaphragm (steel wire diameter 2.0mm) and single diaphragm (2.2mm). The commonly used double diaphragm Reynolds pad has the advantages of convenient construction, slope protection can avoid stone collapse, and add the anti scour ability of the structure

Reno Mattress features:

1. Improve the stability of channel slope

2. Maintain the river channel to avoid scouring

3. Predetermined value of roughness coefficient (m)

4. Beautification and ecological maintenance of slope and bank protection

5. Convenient construction
