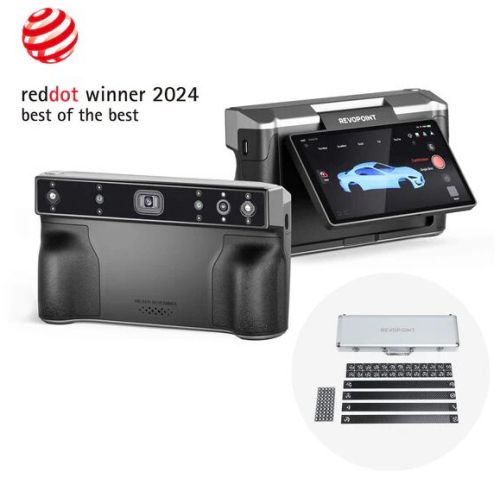

Plastic Revopoint Miraco Plus Standalone 3d Scanner

Revopoint MIRACO Plus – Description

The Revopoint MIRACO Plus is a standalone 3D scanner that integrates photogrammetric metrology with structured light scanning. It delivers high-precision 3D scans without needing a computer, thanks to its built-in computing system. The scanner achieves single-frame accuracy of up to 0.04 mm and volumetric accuracy with photogrammetry of 0.02 mm + 0.05 mm per meter, making it ideal for industrial design, reverse engineering, and quality inspection.

The MIRACO Plus features a 48 MP RGB color camera, 1.5× and 2× optical zoom, and dual scanning modes: single-shot and continuous. With real-time processing, a 6-inch 2K AMOLED touchscreen, and up to 20 frames per second scan speed, it supports efficient, high-detail scanning in a fully portable, self-contained device. The included Photogrammetric Metrology Kit (PMK) enables professional-grade measurement accuracy.

• Scanning Technology: Infrared structured light with 1.5× and 2× zoom, 48 MP RGB color capture

• Single-Frame Accuracy: Up to 0.04 mm

• Photogrammetric Accuracy: 0.02 mm + 0.05 mm per meter (using PMK)

• Scan Speed: Up to 20 frames per second (fps)

• Scanning Modes: Single-shot and Continuous

• Display: 6-inch 2K AMOLED touchscreen, 180° rotatable

• Processor: 8-core ARM CPU

• Memory & Storage: 32 GB RAM, 256 GB internal storage

• Battery: 5000 mAh, approx. 2 hours of use; 50 W fast charging (80% in ~35 min)

• Operating Range: 100 mm to 1000 mm

• Scannable Object Size: From 10 × 10 × 10 mm up to 4000 × 4000 × 4000 mm

• Device Dimensions: 200 × 50 × 110 mm

• Weight: Approx. 750 g

• Connectivity: USB Type-C, Wi-Fi 6, Bluetooth 4.1

• File Formats: STL, OBJ, PLY, ASC, 3MF, GLTF, FBX

• Tracking Modes: Feature, Marker, Global Marker, Photogrammetric

• Included Accessories: Tripod, dual-axis turntable, calibration boards, scale bar, coded targets (magnetic & adhesive), sample bust, carrying case, power adapter, marker kits, scanning mats, wrist strap

• Standalone operation – no PC required

• Metrology-grade photogrammetry for precise large object scanning

• High-resolution 48 MP color capture

• 1.5× / 2× zoom for flexible object sizes

• Real-time processing and editing on device

• Complete metrology and scanning accessory kit included
