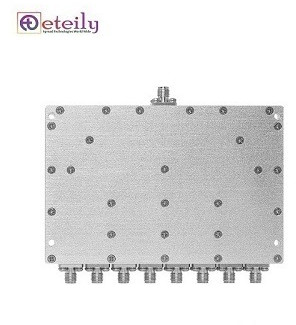

RF 698-2700mhz Sma Female To Sma Female 8 Way Micro Strip Power Divider Power Splitter

The RF 698-2700 MHz SMA Female to SMA Female 8-Way Microstrip Power Divider / Power Splitter is an electronic component used to split or combine RF (radio frequency) signals in applications such as telecommunications, wireless networks, and radar systems. Here’s a detailed description:

1. Frequency Range: The device operates across a wide frequency range from 698 MHz to 2700 MHz. This makes it suitable for use in various communication systems such as cellular networks (including 4G and 5G), Wi-Fi, Bluetooth, and other RF applications that operate within this frequency spectrum.

2. 8-Way Splitter/Divider: It splits a single input signal into 8 equal output signals (or combines 8 inputs into one output), typically with minimal signal loss and without affecting the integrity of the RF signal. This is useful in systems that require distributing a signal to multiple paths or receivers.

3. SMA Female Connectors: The device comes with 8 SMA (SubMiniature version A) female connectors, commonly used for RF connections. These connectors are reliable and commonly found in professional communication equipment for their durability and ease of connection.

4. Microstrip Design: The power divider uses a microstrip design, which is a compact and cost-effective solution for high-frequency signal distribution. Microstrip lines are typically used in RF circuits for their low loss and simplicity in fabrication.

5. Low Insertion Loss: Power dividers and splitters are designed to minimize loss of signal strength when splitting or combining signals. This component is engineered to provide minimal insertion loss, ensuring the signal strength remains as consistent as possible.

6. Impedance Matching: Typically, RF power dividers are designed to have an impedance of 50 ohms, which ensures that the divider matches the impedance of the transmission line, preventing signal reflections and maximizing power transfer.

7. Applications: This type of power divider is ideal for use in testing equipment, network analyzers, antenna systems, broadcast transmitters, wireless communication devices, and other RF systems where signal splitting or combining is required.

• Versatile: Suitable for a wide range of RF applications from 698 MHz to 2700 MHz.
• Compact and Efficient: The microstrip design is space-efficient and provides low loss and high reliability.
• Ease of Use: The SMA female connectors ensure ease of integration with other RF devices and components.

This RF power splitter/divider is essential in systems that require effective signal distribution with minimal interference and signal degradation.
