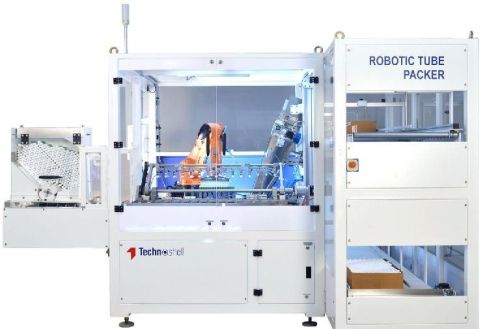

Robotic Tube Packer- RTP 150

Application: High speed, robotic tube packer which uses a 6-axisrobotic arm, for high speed pick and placements of tubes(plastic, lamitubes) into boxes.

Features:

• 6-axis robotic arm to pick and place tubes
• Tubes are always guided
• Angular box placement
• High flexibility and reliability
• Extremely low change parts requirement for different tube sizes
• Very low changeover time
• Box buffer ensuring continuous packing operation
• Box loading conveyor with controllable loading orientationand a horizontal unloading conveyor

Technical Specifications:

• Speed: upto 150 tubes / minute
• Tube diameter: minimum 19mm, maximum 60mm
• Tube length: minimum 70mm, maximum 250mm
• Box size: maximum (600x600x250) mm
