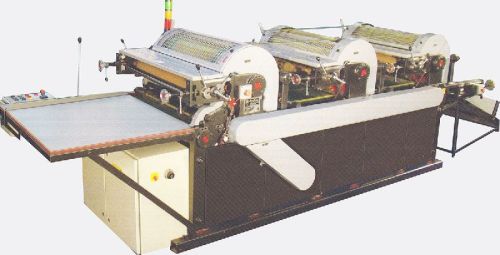

Rotary Flexographic Printing Machine

Suitable for fabric of FIBC (flexible intermediate bulk container) / bags

Printing medium : Instant dry ink

Feeding : Hand-feed table topped with Formica sheet with synchronization mechanism with photo-polymer or rubber stereo.

Accuracy of registration : +- 2 m.m.

Print size : W-1270 / 1524 m.m. L-1371 / 1778 / 2031 / 2540 m.m.

Number of colours : up to 4 colours

Output : Maximum of 1200 bags per hour

Power requirement : 1 to 7.5 H.P. (depending on no. of colours), 3.0, 380 / 440 vax, 50 / 60 HZ. With A.C. Variable speed, Programmable Counting meter, Inching facility, Conveyor protecting arrangement, E-stop, Flashing Beacon etc.

Drive : 1 to 7.5 H.P.(depending on no. of colours), 3.0, 380 / 440 vac, 50 / 60 HZ, 1440 RPM, TEFC, IP 55, electric motor.

Brief description : robust construction with CI machined side walls, mechanized adjustable feeding mechanism for synchronization with photo-polymer plate (rubber stereo); flexo plate cylinders fabricated from heavy plate, for mounting flexo-plate (stereo), Variable speed drive through frequency converter and painted with hammer tone finish.
