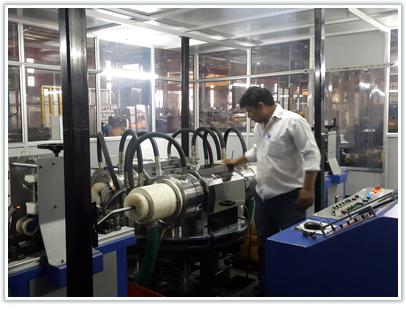

| Type | Rotational Probe Head, Tube/Pipe Moving linearly through probe head and Probes are rotating around the tube/pipe. |
| Suitable Diameter Range ** | Min. OD – 25 mm / Max. OD – 60 mm. Min. OD – 40 mm / Max. OD – 80 mm. |
| Suitable thickness Range ** | Min. WT –1 mm / Max. WT – 6 mm. |
| Through-put speed | 5 to 20 meter/minutes Maximum Depend on tube Diameter Range and channel configuration |
| Number of Probe Head | One/ Two as per customer requirement of Diameter range. |
| Number of probe | 06 Nos / 12 Nos / 22 Nos As per Customer selection of channel configuration. |
| Type of probe | Immersion type Line focused probes with frequency ranging From 4 MHz to 10 MHz with short focal length. |
| Probe Configuration | XX Nos. probes for Longitudinal Defect detection XX Nos. probes for Transverse Defect detection, XX Nos. probes for Wall thickness measurement |
| Medium | DM water |
| Water Capacity/feeding | Up to 400 Litters / Pressurized based feeding |
| Ultrasonic signal transfer | Slip ring based. |
| Application | Suitable for Seamless Cold Draw / Hot rolling Tube/Pipe Suitable for Boiler/Heat Exchanger/ Pressure vessels Tube/pipe |
