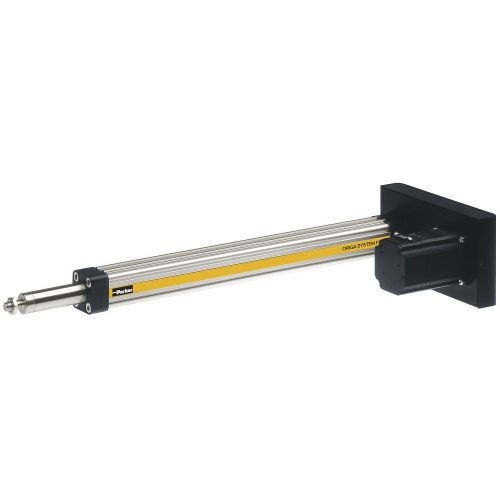

SCREW DRIVEN ELECTRIC CYLINDER

The OSP-E..SBR ballscrew electric linear actuators, with internal plain bearing guide and extending piston rod, are suitable for continuous duty operation and offer accurate path and position control.
OSPE25-SBR Electric Cylinders - Performance Characteristics :
• Actuator Size : 25 (piston rod thread to ISO 6431)
• Thrust Forces : up to 260 N
• Stroke Lengths : up to 500 mm
• Speeds : up to 0.25 ms
• Acceleration : up to 5 ms²
• Screw Lead : 5 mm
• Typical Repeatability : ± 0.05 mm
• IP54 Rated
• Parallel keyway option
• Diverse range of accessories and mountings
• Dovetail grooves for mounting accessories
• Special versions on request
OSPE25-SBR Electric Cylinders - Advantages :
• High Output Force
• Excellent Running Characteristics
• Accurate Path and Position Control
• High Levels of Repeatability
