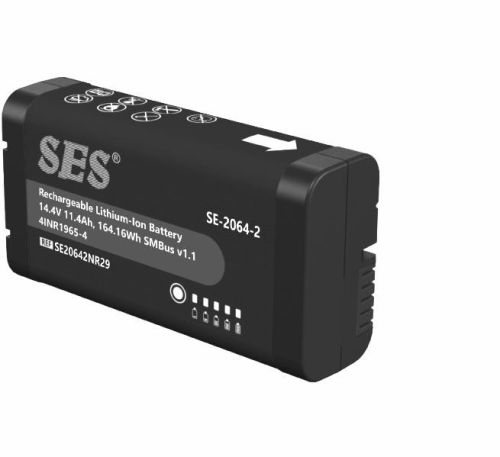

SE20642NR29 14.4V 11.4Ah (164.16Wh) Lithium Ion Battery  The SE20642NR29 is a 14.4V 11.4Ah (164.16Wh) Lithium ion smart battery which can be used in a numerous portable equipments. The battery....
The SE20642NR29 is a 14.4V 11.4Ah (164.16Wh) Lithium ion smart battery which can be used in a numerous portable equipments. The battery comprises sixteen 3.6V 2.85Ah INR-18650 cells in a 4-series, 4-parallel array and can deliver up to 6A of dischargecurrent. The internal battery management system (BMS) is System Management Bus (SMBus) and Smart Battery System (SBS) compliant and can operate as part of a smart battery system along with a compatible smart charger and host device.
Externally,the battery has a UL-94V-0 rated plastic enclosoure and features an industry standard 5-way connector interface for power and communication. Both right angled and vertical mating connectors are availble as a accessories. A-5segments LED display on the top of the battery provides the user with an easy way of viewing remaining battery capacity in 20% segments.
The SE20642NR29 meets the requirements of UN38.3 (transportation), is CE marked and RoHS / WEEE complaint.
