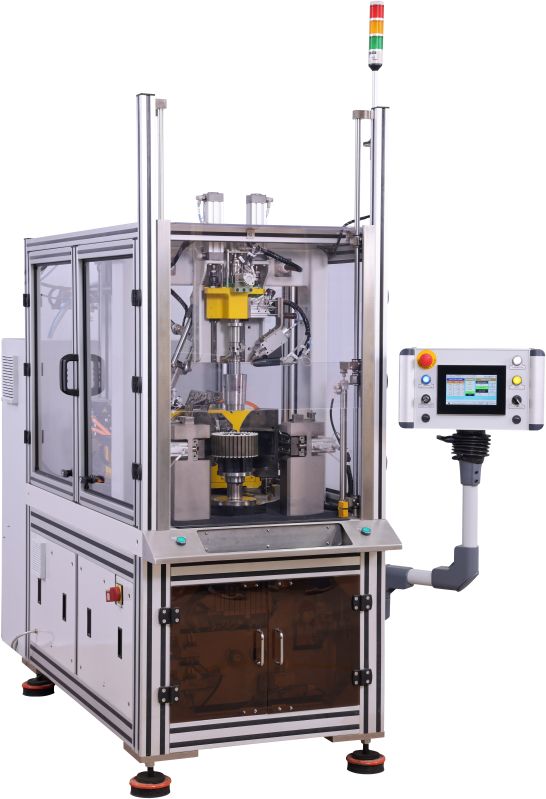

ST1 200 Single Station Winding Machine

Product Description

• Specifically designed to wind high fill factor BLDC motors and special purpose motor coils with precision mechanics.

Features

• Flyer-type winding head
• Automatic core indexing, pneumatically actuated wire cutting and gripping, servo actuated finger opening
• Electronic wire tension control through PLC to achieve precise tension; programmable tension for different stages of winding facilitates better winding quality and flexibility in routing
• Material exhaust sensing with Smart-Detect system to judge adequacy of material available on the spool at the beginning of each cycle, reducing material wastage (optional)
• High-performance multi-axes controller in stand-alone mode with multi-program memory and PC interface
• Flexible menu-driven programming through Windows-based graphical user interface (external PC) and user-defined operation sequencing, coupled with a powerful set of intelligent functions for achieving complex winding configurations with exceptional ease.
