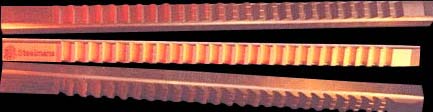

Push and Pull types Involute and Straight Spline, Serration broach, Surface , Keyway, Special Profile Broaches, Keyway, Hexa. Broaches and Standard Broach Sets....Gear Hobs , Gear Cutters ..Vertical and Horizontal Broaching Machines , Broach sharpening machines....
| STM No. | Broach Size | Tolerance | Tooth Pitch | No.of Teeth | Shims Req'd | Broach Dim. |
|---|---|---|---|---|---|---|
| 201 | 1/16-A | .0625-.0635 | 42445 | 18 | 0 | 1/8 X 5 |
| 210 | 3/32-A | .0938-.0948 | 42445 | 18 | 0 | 1/8 X 5 |
| 219 | 1/8-A | .1252-.1262 | 42445 | 18 | 1 | 1/8 X 5 |
| 0.228 | 3/32-B | .0937-.0947 | 11933 | 16 | 0 | 3/16 X 7 |
| 237 | 1/B-B | .1252-.1262 | 11933 | 16 | 1 | 3/16 X 7 |
| 246 | 5/32-B | .1564-.1574 | 11933 | 16 | 1 | 3/16 X 7 |
| 255 | 3/16-B | .1877-.1887 | 11933 | 16 | 1 | 3/16 X 7 |
| 264 | 3/16-C | .1877-.1887 | 42437 | 22 | 1 | 3/8 X 12 |
| 273 | 1/4-C | .2502-.2512 | 42437 | 22 | 1 | 3/8 X 12 |
| 282 | 5/16-C | .3127-.3137 | 42437 | 22 | 2 | 3/8 X 12 |
| 291 | 3/8-C | .3755-.3765 | 42437 | 22 | 2 | 3/8 X 12 |
| 300 | 5/16-D | .3127-.3137 | 42498 | 17 | 2 | 9/16 X 14 |
| 309 | 3/8-D | .3755-.3765 | 42498 | 17 | 2 | 9/16 X 14 |
| 318 | 7/16-D | .4380-.4390 | 42498 | 17 | 3 | 9/16 X 14 |
| 327 | 1/2-D | .5006-.5016 | 42498 | 17 | 3 | 9/16 X 14 |
| 345 | 5/8-E | .6260-.6270 | 42498 | 20 | 4 | 3/4 X 16 |
| 354 | 3/4-E | .7515-.7525 | 42498 | 20 | 5 | 3/4 X 16 |
| 363 | 7/8-F | .8765-.8775 | 42498 | 26 | 6 | 1 X 21 |
| 372 | 1-F | 1.0015-1.0025 | 42498 | 26 | 7 | 1 X 21 |
| STM No. | Broach Size | STM No. | Broach Size |
|---|---|---|---|
| 381 | 1/8-A | 471 | -- |
| 390 | 1/8-B | 480 | 1/2-D |
| 399 | 5/32-B | 489 | 5/8-E |
| 408 | 3/16-B | 498 | 3/4-E |
| 417 | 3/16-C | 507 | 7/8-F |
| 426 | 1/4-C | 516 | 1-F |
| 435 | 5/16-C | 525 | 39448 |
| 444 | 3/8-C | 534 | 37987 |
| 453 | 5/16-D | 543 | 39450 |
| 462 | 3/8-D | 552 | 37257 |
