STYLE 2236 Flexible Graphite With Inconel Wire, Low Emission

The new TEADIT® packing Style 2236 is made from layers of flexible graphite tape plied into compact strands; each individual filament is reinforced with an Inconel wire jacket. This yarn is then treated in a special process and braided to form a dense yet malleable packing, which is subsequently treated with lubricating agents to reduce stem friction and a corrosion inhibitor to prevent pitting (Inconel is a registered trademark of International Co.). TEADIT® Style 2236 is a special valve packing which assures extremely low emission, especially designed for high pressure and high temperature service. It is self-lubricating, non hardening, dimensionally stable and easy to install. The Inconel wire mesh covering makes this packing highly resistant to extrusion, the advanced construction assures supreme leakage control and highest integrity in service.
Typical applications for style 2236 include all the valves where LOW EMISSION is a must. This packing is suitable for VOC and VHAP emission regulations and exceeds TA-Luft requirements. It is designed for steam applications, Teadit style 2236 can also be used with most chemicals and gases.
It is not suitable for highly oxidizing agents at high temperature.
It has high mechanical and thermal stability; chemically inert within pH range 0-14; quick and easy to install; low friction, special lubricating system; corrosion inhibitor.

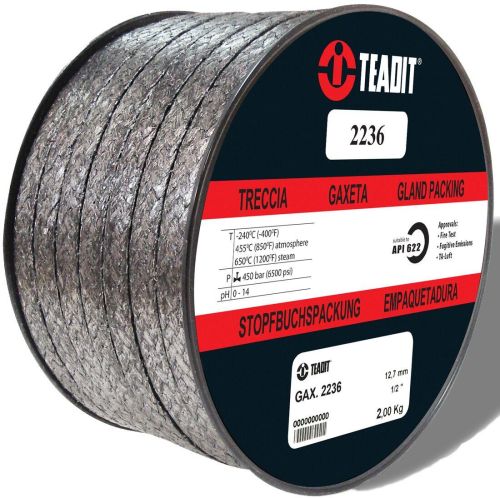

Please note: the colour of the actual product might vary from the above image on this data-sheet.
Certified Low-Leakage Packing Technology
TA-Luft approved
Suitable to VOC and VHAP emissions regulation
Environmentally friendly valve stem packing with extreme emissions control
API 622
API 607
ISO 15848
