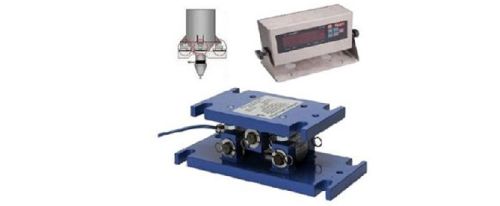

TANK Weighing Systems - ELP TK Series

Liquids, powders, solids, and gases are captured, stored, and processed in many different types of vessels, tanks, hoppers, and unique containers. Whether managing inventory, ensuring product consistency, or eliminating waste, there are numerous requirements for integrating weighing into these structures. We have solutions for all your needs.

Features

• 25 mm LCD display with backlight
• Built-In Battery Backup for standalone operation upto 72 hours.
• Low battery warning.
• Auto sleep/power down function to save battery life.
• Stabilization indication.
• Backlight setting function.
• Colour coded and sealed keypad.
• Simple user-friendly operation.
• Alloy Steel Argon welded Load cell – confirms to IP 67.
• Sealed Stainless Steel junction box.
• Rugged top and bottom mounting plates with lift Jacks.
• Steel encapsulated interface cable suitable to withstand hostile environment.
• Built-in RS232 serial interface.
• Technology Assisted From Applied Weighing – United Kingdom.

Range ModelCapacityReadabilityType

ELP – 003 TK3	300 kg	100 g	3 Leg
ELP – 003 TK4	300 kg	100 g	4 Leg
ELP – 006 TK3	600 kg	100 g	3 Leg
ELP – 006 TK4	600 kg	100 g	4 Leg
ELP – 015 TK3	1500 kg	500 g	3 Leg
ELP – 015 TK4	1500 kg	500 g	4 Leg
ELP – 030 TK3	3000 kg	1 kg	3 Leg
ELP – 030 TK4	3000 kg	1 kg	4 Leg
ELP – 060 TK3	6000 kg	2 kg	3 Leg
ELP – 060 TK4	6000 kg	2 kg	4 Leg
ELP – 100 TK3	10000 kg	5 kg	3 Leg
ELP – 100 TK4	10000 kg	5 kg	4 Leg

Specifications General Specifications Particulars

Operating temperature	0°C to 50°C
Operating humidity	95% RH Max. (Non-condensing)

Technical Specifications Particulars

Internal Resolution	20,00,000
AC Power Supply	100~250V
DC Power Supply	6V
Frequency	50~60HZ
Power Consumption	10 Watts Approx

Options

• 4 to 20mA Current Loop or 10VDC output for connection to PLC
• Dual Set Point With Relay Output
• RTC (Real Time Clock) For Printing Date And Time Of Weighment
• Wall Mounting 12.5 mm Red LED Remote with 6 meters Cable
• Wall Mounting 24.4 mm Red Serial L.E. D. Remote with 10 Meters Cable
• Wall Mounting 75 mm Red Serial L.E. D. Remote with 10 Meters Cable
• Flameproof Indicator with Zener Barrier and armored cable (4 Key Function)
• Flameproof Indicator with Zener Barrier and armored cable (8 Key Function)
