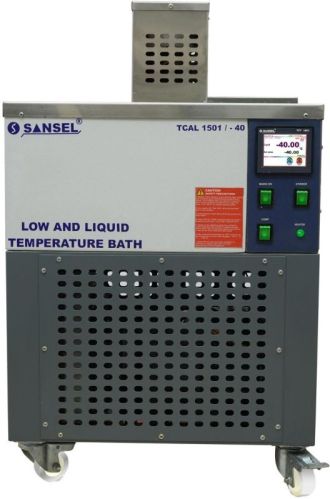

SANSEL Electric TCAL 1501/-40 Liquid Temperature Bath, Color : Grey

SANSEL series TCAL 1501/- 40 is a micro controller based precision “LOW TEMPERATURE LIQUID BATH” generates true reference temperature with high resolution and stability. The temperature controller of the bath uses a auto tune FUZZY PID controller algorithm. This fast response closing follows the cooling curve of an actual thermal system.

Place the thermometers and thermocouple & RTDs to be calibrated in the bath. Set the temperature from the 3.5 inch true TFT display with touch screen . Both liquid and set temperature can be read. When stabilization occurs, simply read the temperature and re-calibrate the thermometer, sensor etc., or comparison with master RTDs reading.

Features :

• 3.5 inch True TFT display with Touch screen
• Range from – 40 to 50°C
• Resolution 0.1°C
• Stability ± 0.05°C
• Radial uniformity better than ± 0.2°C
• Stability time & status indication provided
• Multi hole provision for different type of sensors, sensor with Indicators & Thermometer calibrations.

Specifications :

• Model: TCAL 1501/ - 40
• Display: 3.5 inch True TFT LCD Display with Touch screen
• Temperature Range: -40 to 50°C
• Resolution: 0.01°C
• Heating & Cooling medium: ETHYLENE GLYCOL HOCH2CH2OH purity 99% (3litres) + Pure distilled water (1.5 litres ) for range from - 40 to 50°C
• Stability: ± 0.05°C
• Uniformity: ± 0.2°C
• Stabilization Time: 15 minutes
• Heating time: 30 mins
• Cooling time: 60 mins (amb. (25°C to - 40°C ) @25°C
• Multi hole PP top cover: Provided for test Thermometer or sensor holding
• Power supply: 230V AC 50/60Hz
• Power Consumption: 1300 VA
• Calibration chamber size: 90 W x 120 H x 175 D mm
• Overall Dimension: 530 x 340 x 670 (L x W x H) (+155mm circulation motor) (Approx.)
• Weight: 52 kg (without liquid)

Accessories

• Basic Instrument
• Top multi hole PP chamber cover
• Top SS Dummy cover
• Spare Fuses
• Instruction Manual
• Test Certificate
• Mains Card
