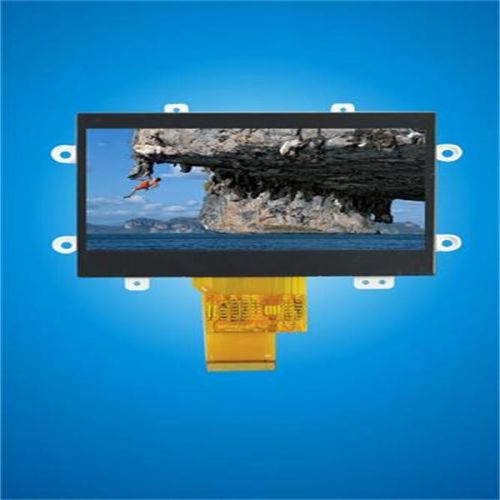

TFT Panel

4.0" TFT LCD Panel
- Model No.:SAT043CM40D-HY0-C0
- System: PALNTSC Automatic
1. INTRODUCTION
(1). SUMMARY
This technical specification applies to 4.3[color TFT-LCD panel. The 3.45[ color TFT-LCD
panel is designed for GPS, camcorder, digital camera application and other electronic products
which require high quality flat panel displays.
This module follows RoHS.
(2). FEATURES
High Resolution: 230,400 Dots (480 RGB x 272). LQ035NC111 is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT LCD panel, driver ICs, FPC and a
backlight unit.
2. MAIN PARAMETERS
LCD size
4.3 inch(Diagonal)
Driver element
a-Si TFT active matrix
Resolution
480×3(RGB) ×272
Display mode
Normally White, Transmissive
Backlight source
LED backlight
Pixel pitch
0.066(W)×0.198(H)mm
Pixel Configuration
RGB-Stripe
Signal system
PALNTSC
Active area
82.08(H) X 61.56(V)mm
Outline dimensions
105(W) ×75.8(H)×5.70(D) mm
Display Garmut
NTSC 60%
Surface treatment
Anti-Glare
Backlight Power consumption
TBD
3. PACKING
Sample packing dimension:180×120×30mm
Module writing:SAT-86-SF-10P-125 SAT-85-SF-2P-200
(SAT-86-SF-9P10P-125)each 1pcs
Large box of packing specifications:447(L)*382(W)*292(H)mm
Carton quantity:No bracket 60pcs, each separated by paper card board.
