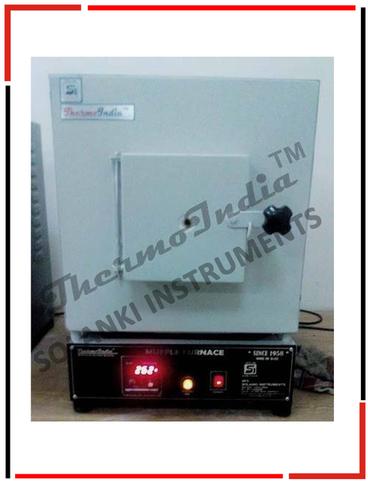

Laboratory Muffle Furnace 1000 Deg. C.

We feel proud to introduce themselves as a leading manufacturer, supplier and trader of Laboratory Muffle Furnace 1000 Deg. C. In New Delhi, Delhi, India.
* temperature max 1000 °c
* working temperature max 900° c.
* accuracy ± 1% or better
* outer body made by mild steel with epoxy powder coated.
* (optional outer body made by stainless steel)
* heating from four sides
* the furnace can run continuously trouble free.
* the furnace is insulated with ceramic fiber blanket of high density for better insulation.
* the furnace is quick heating type, light in weight, table mounting type, compact elegant in design.
* temperature controlled by digital temperature controller to avoid over heating for long life and trouble free working.
* a viewing cap is also provided on the door.
* solid state relays provide for low-noise operation
* the swing door insulated with ceramic fiber to avoid heat losses from the door.
* the control panel is fitted at the top or bottom of the furnace
* the apparatus complete with thermocouple, main lead, with power plug.
* defined application within the constraints of the operating instructions
* to work on 220230volts or 400 440 volts a.c. 3 phase supply.
Size :
w100 x h100 x d225mm (4x4x9), w125 x h125 x d250mm (5x5x10), w150 x h150 x d300mm (6x6x12), w200 x h200 x d300mm (8x8x12)
