IR6 Dual Laser Extended Range Infrared Thermometer

IR6 Dual Laser Extended Range Infrared Thermometer

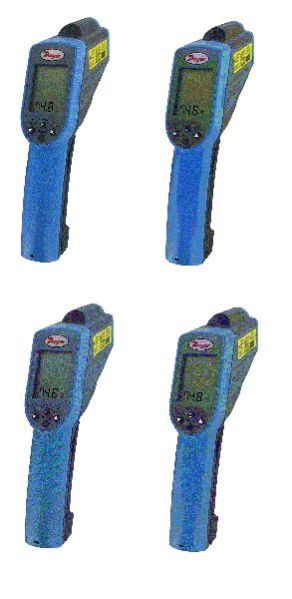

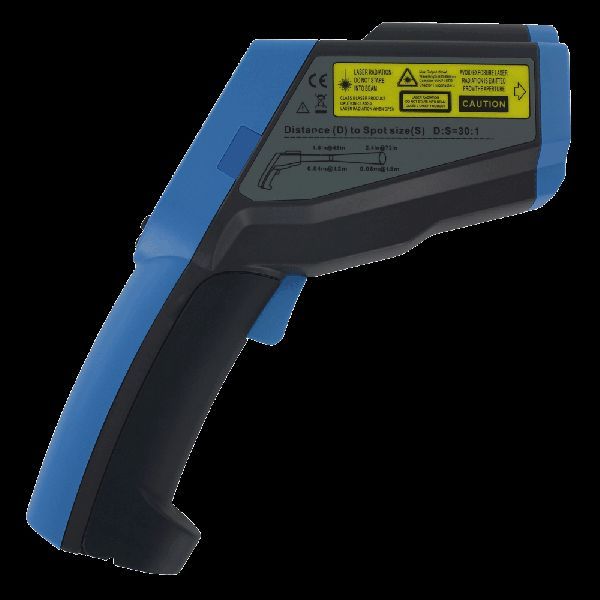

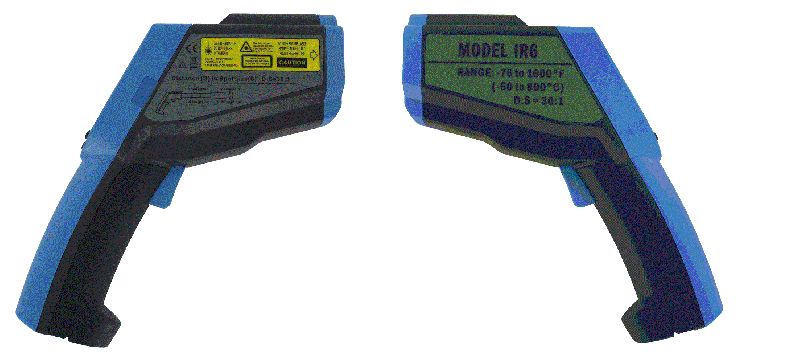

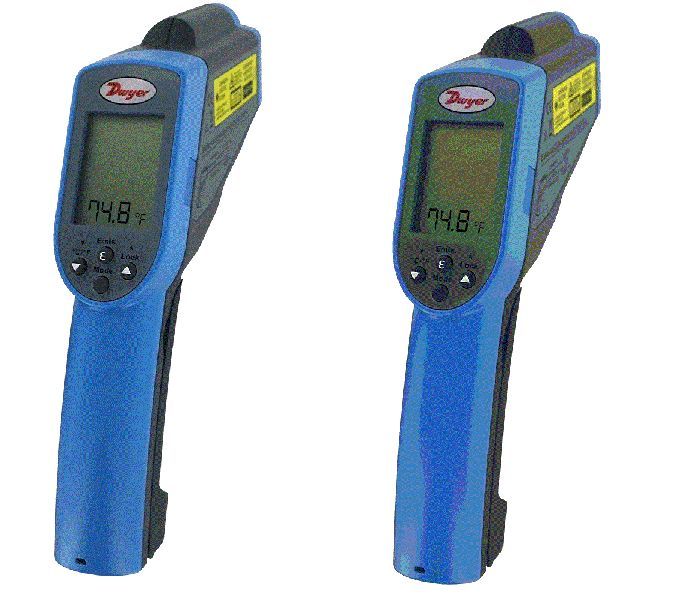

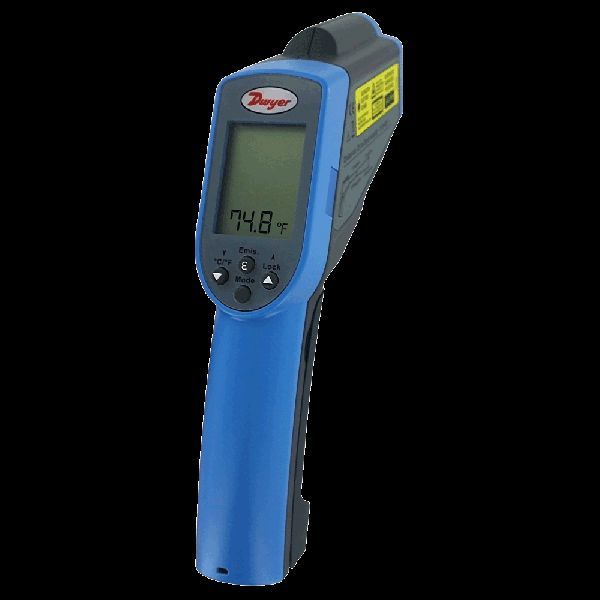

Series IR6/IR7 Dual Laser Extended Range Infrared Thermometer

Up to 50:1 Distance-to-Target Ratio

The Series IR6IR7 Dual Laser Extended Range Infrared Thermometer is ideal for accurately measuring surface temperatures from long distances. This feature packed handheld device allows the user to read the maximum, minimum, average, and differential readings. The high and low alarms give audible and visual indication of the process temperature. When taking measurements in dark areas, a built-in white light can be used to illuminate the measurement area. For long term measurements, the unit includes a dual magnetic base attachment that allows hands-free measurements.

Product Applications

• Measuring hot surfaces from a long, safe distance

Specifications

• Measurement Range:IR6: -76 to 1600°F (-60 to 871°C); IR7: -76 to 1832°F (-60 to 1000°C).
• Operating Range:32 to 122°F (0 to 50°C).
• Accuracy:±2% of readings or 4°F (2°C) whichever is greater.
• Resolution:0.1°F (0.1°C).
• Response Time:1 second.
• Distance to Target:IR6: 30:1; IR7: 50:1.
• Emissivity:0.95 default, adjustable 0.10 to 1.00 in 0.01 steps.
• Power Requirements:(2) AAA alkaline batteries, included, user replaceable.
• Battery Life:180 hours continuous use.
• Units:User selectable °F or °C.
• Weight:13.62 oz (386.1 g).
• Agency Approvals:CE.
