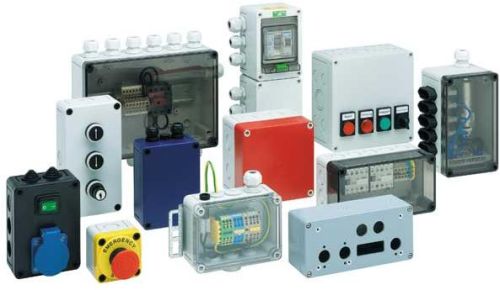

TK Anwendung Gruppe 01 Thermoplastic Junction Box

Avail highly efficient Thermoplastic Junction Box (Spelsberg range) from us at very reasonable prices. We import Thermoplastic Junction Box from Günther Spelsberg GmbH & Co. KG; Schalksmühle. Thermoplastic Junction Box, offered by us, can be availed in different dimensions to match the different requisites of the clients.
Features :
Made from quality PC thermoplasticDegree of Ingress Protection IP 65 in accordance with IEC 60 529Robust hinge on left right hand sidePre-fabricated (pre-molded) knock out for cable entryPerform under ambient temperature from -35 deg. cent. up to +80 deg. CentResist temperature up to +130 deg. CentHalogen & silicon freeFire retardant & self extinguishingCombustion behavior shall be in accordance with VDE 0471 UL 94 for 960 deg. cent, V – 2UV resistance according to UL 746Three mounting fixing arrangement for flexibilitySmall distribution of plastic surface mount for installation of devices up to 63A according to standard DIN 43 880th
Ideal for :
Indoor and outdoor installationDistribution of impact-resistant polystyrene, RAL 7035, with transparent doors on the Installation series.The doors are individually sealed.With pre-assembled PE N terminal rail (Easy to mount in from the AK 14 screwless design).
Ambient temperature :
Minimum : 25 o C up to + 40 o CMaximum relative humidity at 40 o C 50%
Material :
Polystyrene
Protection :
Double insulation, protection class IIIP 65 with double elastic membrane gland
Rated voltage :
AC 400V690
