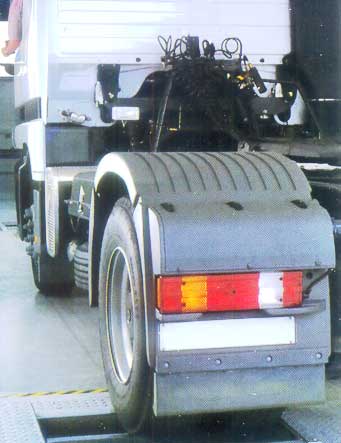

Truck Break Tester

4WD Brake Roller group TECHNICAL FEATURES:

Campo di funzionamento: Per camion. bus, furgoni Operating Range: Trucks. Buses, vans and all passenger cars, max. axle load 18 t

Tyre size 10"-24"

Connection: 3 x 230/400 V, 50Hz Fuses 3 x 50A, slow-acting [other power supply on request)

Roller set [split] Max axle load 18 t Motor drive 2 x 11 KW AY Test Speed 2.6 km/h and 5,2 km/h Roller Diameter 280 mm Roller length 1000 mm

Rollers dimensions with under-floor split roller sets [LxWxHJ 1 300 x 11 60 x 600 mm

Track width min./max. variable 900/2900 mm

Roller friction coefficient dry/wet 0,8/0,6

Display Unit Range of display, with automatic switching 0-8 KN, 0-40 KN 6-digits LCD displays [HJ 100 mm [L x W x HJ 600 x 880 x 380 mm Dimensions of display cabinet (W x H x OJ 600 x 850 x 380 mm FUNCTIONS:-

OMS measurement system

Double Speed and high performance motors: 2,6 + 5,2 Km/h

Test Load: 18 T.

Easy to use

The infrared remote control allows one operator to carry out all tests in a fully independent way

Easy Exit Thanks to this electromagnetic blocking device. the rollers exit is possible with any trucks, bus or tractors of any loads and in any atmospheric conditions,

Analogical-Digital display Led indicating the threshold of unbalance, LCD display with 6 positions, double pointer for left and right wheel
