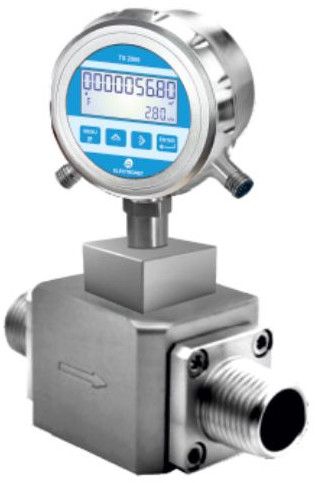

TS2000 AFM Industrial Air Flow Meter Switch

Features

• Suitable for compressed air applications

• Integral flow indicator, totaliser, and transmitter

• No external accessories required

• Line size: 15NB to 50NB

• Maintenance-free operation

• Durable SS-316 enclosure for superior corrosion resistance

• IP-68 protection for reliable operation in harsh and wet environments

  Technical Specifications

• Line Size: 15NB to 50NB

• Accuracy: ±2% of F.S

• Repeatability: ±0.5% of F.S

• Power Supply: 18 to 36V DC

• Display: Backlight LCD

• Output: 4 to 20 mA

• Additional Output (Optional):

  • 1 Relay Output

  • RS-485 MODBUS RTU

• Connector: M12 Connector

• Protection: Weather-proof IP-68

• Electronics Enclosure: SS-316

• Flow Tube: SS-316

• Plate: SS-316

• Sensor Diaphragm: SS-316L / SS-304

• Gasket: PTFE (others on request)

• Sensor Type: Piezo-resistive

• Alarm/Relay Output: Available

• Communication Output: RS-485 (optional)

• Electrical Connection: M12

• Ambient Temperature: -20°C to 70°C

• Ambient Humidity: 5% to 95% (non-condensing at 25°C)

• Process Connection: Standard (custom options available)
