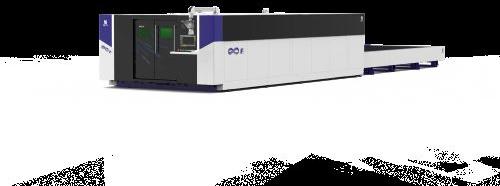

Ultra High Power Infinity F1, High Power CNC Laser Cutting Machine

 Product/Service Description: Introducing the INFINITY F1, a cutting-edge 2D fiber laser cutting system meticulously crafted by SLTL Group, India’s pioneering fiber laser cutting machine inventor and manufacturer.

Designed for optimal safety, the INFINITY F1 boasts a hermetically sealed cabinet, providing a secure environment for seamless operation. Its rapid booting time sets a new standard for efficiency, and the high-end 64-bit CNC controller, with a user-friendly interface, responds within an impressive 20 nanoseconds, making the Infinity super responsive.

Key Features of Infinity F1:

Anti-Collision Mechanism: The Infinity F1 features an advanced anti-collision mechanism comprising snip, sew, and parabolic leaps. This minimizes non-productive times caused by parts tipping over during the cutting of thin sheet metal, ensuring continuous productivity without collisions between the laser head and cut-out pieces.

Auto Sheet Orientation: Revolutionize your cutting process with the auto-sheet orientation feature. Say goodbye to manual sheet alignment for each cutting operation as this innovative feature automatically orients the program to match the angle of the sheet. Eliminate non-productive time spent on rearranging sheets, accelerating your workflow.

Smart Automation: The Infinity F1 incorporates smart nesting software with exceptional intuitiveness. This software not only reduces processing time for smaller designs but also enhances efficiency for larger parts. Users can effortlessly add, change, or delete programs on the go, achieving maximum precision and high-speed laser outputs of up to 10 kW.

Effective Work with Leading Software: The integration of superior laser machines with smart nesting software ensures effective work processes. This highly intuitive software minimizes processing time for various design sizes, providing flexibility to users for real-time program adjustments. Experience maximum precision and high-speed laser outputs at peak power with the Infinity F1.

Unleash the power of precision and efficiency with the Infinity F1 – where cutting-edge technology meets the demands of the future in metal cutting.

Specification/Additional Details

a.      Model: Infinity F1 Ultra High Power

b.      Laser Source: Fiber

c.       Laser Power: 12, 20, 30 kW

d.      Power Consumption: 56, 85, 120 kW

e.      Working Area (X Y Z): 6520 x 2550 x 6550mm (256.9’’ x 2550’’ x 257.9’’)

f.        Maximum Speed (X Y Z): 110m/min

g.      Position Accuracy: ±0.05 mm/m

h.      Repeatability: ±0.02 mm/m

i.        Work Piece Weight: 6500 kg

Country of origin: Made in India
