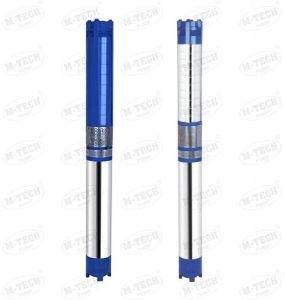

V6 Radial Flow v6 Submersible Pump

Features
More durability
High operating efficiency
Induction motors are easily re-windable using multi layer PVC insulated wire for better reliability.
Bowl made up with SS304 in SS model and FG 260 grade cast iron in CI model.
Impiller made up with SS 410 / Nylon(with ss neckring).
Self-aligned carbon Stainless steel thrust bearing which withstands high axial thrust load in water lubrication.
Electrically designed to lower power consumption and operating cost.
Non-magnetic, corrosion-resistant high-grade stainless steel stator body.
LTB-4 Bronze Bush is made with additional centrifugal molding process and 2 % Nickel is added.
Dynamically balanced rotating parts to ensure minimum noise and vibration.
Hydraulic parts are made with Investment Casting or Die-base molding process, which gives higher performance and higher efficiency.
Individually and accurately balanced impeller gives better performance for lower power consumption.
The pump shaft is made of stainless steel hardened and ground to close tolerance.
Epoxy coated Rotor to protect stamping against corrosion
The entire shaft is protected by stainless steel which can be easily replaced when they wear out during maintenance.
All components are machined using state of the art CNC machines to ensure high dimensional accuracy which gives a longer life to the pump.
