Voice Phone Over Fiber Multiplexer, Brand Name : baudcom

We are offering 8channel voice(fxs/fxo) phone over fiber multiplexer.
Functions

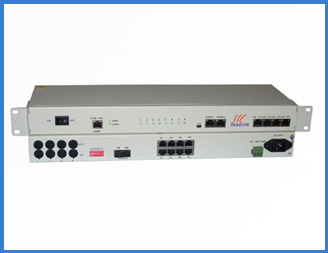

the voice over fiber multiplexer is point to point fiber transmitting equipment, which realizes 1~8 channel voice (fxo, fxs) pots phone over fiber and 4 e1,4*100m ethernet, 4 channel rs232 for option. Its merits include complete warning function, high integration, low consumption, stable performance and convenient usage.
Features
n provides 4 channel e1 g.703 for option;
n provides 1 channel 100m (liner) ethernet ports for option
n provides 8 channel voice port, fxo and fxs for option; also for 24 wire e&m
n provides 4 channel rs232, rate supports 300-15200 bps for option;
n ethernet port 10100m, fullhalf duplex auto-adaptable and supports vlan;
n ethernet port supports auto-mdix (twisted cable and straight cable auto-adaptable);
n 1-8 channel voice connection, supports calling indication;
n configuration: point to point;
n voice port supports o port and s port or e&m interface for order, o port connects switch and s port connects userã¢ï¿½ï¿½s phone;
n optical interface supports scfc interface and supports single fiber interface
optical interface
optical wavelength: single mode 1310nm1550nm
fiber: single fiber or double fiber for option
transmitting consumption: -9dbm-5dbm
transmission range: 0-50km120km for option
optical interface: scfc
receiving and dispatching module: >-6dbm
optical receiver receiving sensitivity
contact us for more details!
