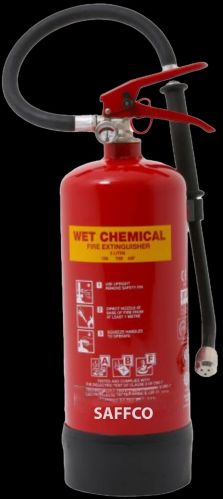

Contact Supplier| MODEL | SA-06-WET CHEMICAL | SA-09-WET CHEMICAL |
|---|---|---|
| Capacity | 6.0 | 9.0 |
| Confirming IS Code | 15683 | |
| Type of Extinguishers | Stored Pressure | |
| Type of Extinguisher Media | wet chemical | |
| Expellant | Pressurized with Nitrogen (N2) Gas | |
| Diameter (Approx) | 150+-10MM | 175+-10MM |
| Height (Approx) | 500 mm | 550 mm |
| Filled Weight (Approx) | 9.0 kg | 12.5 kg |
| Empty Weight (Approx) | 3.0 kg | 3.5 kg |
| Average Discharge Time | 20 sec. | 42 sec. |
| Operating Temperature | -5°C to 60°C | |
| Working Pressure at 20°C | 15.5bar | |
| Maximum Service Pressure | 17.5bar | |
| Hydraulic Test Pressure | 35.0bar | |
| Fire Rating | 3A 75F | 4A 75 F |
| Approvals | BIS & CE | BIS & CE |
