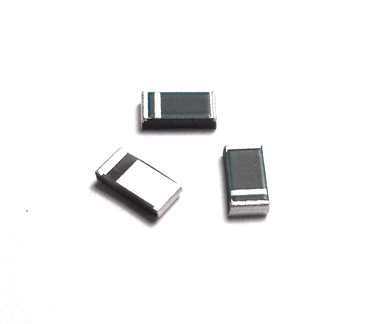

Wraparound Chip Resistors W/ One Extended Mounting Pad RZ Series

Barry Industries manufacturers wraparound chip resistors with enlarged mounting pads on Alumina, AlN or BeO for solder or epoxy. These chip resistors are available in sizes 0805 to 2010 with standard resistance of 0.5Ω to 1MΩ and resistor tolerance to ±1%. Other values are available.Full wrap on either side of chip for solder or epoxy surface mount attachment. Extended mounting pad allows for greater contact with heat sink.Castellated connections on either side of chip for solder or epoxy surface mount attachment. Extended mounting pad allows for greater contact with heat sink.
