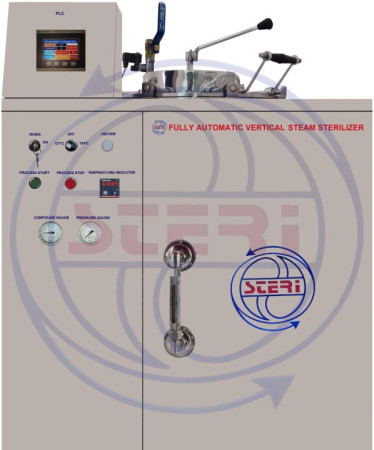

YSU-404 Platinum Fully Automatic High Pressure Steam Sterilizer

Unparalleled Automation and Precision for Advanced Sterilization

• The Steri Vertical Steam Sterilizer Platinum Model Exemplifies the Pinnacle of Sterilization Technology, Combining Full Automation, Robust Construction, and Comprehensive Safety Features. This Model Is Designed for Professionals Who Require Precision and Efficiency, Allowing You to Focus on Other Critical Tasks While the Sterilizer Handles the Entire Process.

Cutting-Edge Automated Features

• Fully Automatic System: Controlled by a Pre-Programmed Plc (Programmable Logic Controller) from Allen Bradley.
• User-Friendly Operation: 4.7” Color Touch Screen Display for Easy Interaction.
• Preset Sterilization Cycles: Includes Four Preset Cycles: Instrument Cycle, Liquid Cycle, Fabric Cycle, and Customer Variable Cycle.

Advanced Alarms and Notifications: Eight Visual Alarms for Temperature and Pressure Overshoot, Door Alarms, Low Water Alarms, and More. Audible Alarms Ensure Immediate Awareness.

• Password Protection: Ensures Secure Access to Sterilizer Settings and Data.
• Superior Construction and Design
• Triple-Walled Construction: Robust Chamber, Steam Jacket, and Outer Covering Made from High-Grade Stainless Steel 304/316.
• High-Quality Insulation: 50 Mm Thick Mineral Glass Wool Prevents Burns and Enhances Energy Efficiency.
• Advanced Welding: Complete Argon Arc Welding for Enhanced Durability and Safety.
• European Style Outer Cover: Fully Covered with Ss 304 Paneling for Complete Protection.

Specifications and Certifications

• Certifications: Isi Mark, Is: 3829 (Part-3), Iso 9001:2015, Iso 13485:2016, Who, Gmp
• Design Standard: European Ce Standard
• Electrical Safety Standards: Iec 60601-1-2016, Iec 60601-1-2, Iec 61010-2
• Advanced Control and Monitoring
• Automatic Control System: Ensures Precise Operation Through a Pre-Programmed Plc.
• Preset and User-Customizable Cycles: Six Pre-Programmed Cycles, Including Four Sterilization and Two Test Cycles (Bowie Dick Test Cycle, Leak Test Cycle).
• Automatic Detection and Alarm System: Alerts for Door Lock, Temperature, Pressure, Water Levels, and Vacuum Issues.
• Automatic Electricity Economizer: Reduces Power Consumption When Optimal Conditions Are Reached.
• Power Cut Cycle Retention: Manages Power Outages and Notifies the User Based on the Duration.
• Enhanced Safety Features
• Emergency Stop: Easily Accessible Stop Button on the Main Control Panel.
• Power Failure Protection: Settings Are Retained During Power Failures, Preventing Automatic Restarts.
• Failure Mode Detection: Audio/visual Signals for Fault Detection.
• Automatic Shut-Off Valve: Prevents Hazardous Leakage in Case of Glass Tube Breakage.
• Hydraulic Testing: Ensures Safety by Testing All Components at Twice the Working Pressure.
• Vacuum Breaker: Prevents Jacket Collapse Due to Steam Condensation.
• Dual Safety Valves: Spring-Loaded Safety Valves for Additional Protection.
• Complete Insulation: Prevents Burns from Accidental Contact with the Sterilizer Body.
• Comprehensive Equipment and Features
• Built-In Steam Generator: Efficiently Feeds Steam to the Chamber.
• Precision Gauges: Includes Pressure, Compound, and Temperature Gauges.
• Automatic Pressure Control Switch: Maintains Desired Pressure Levels.
• Comprehensive Drainage: Drain Valve and Water Level Indicator Housed in Ss Enclosure.
• Hi-Tech Mechanical Vacuum System: Ensures Thorough Sterilization by Removing Air Pockets and Enhancing Steam Penetration.
• Quick Hot Air Drying System: Ensures Each Load Comes Out Completely Dry.
• Automatic Water Feeding System: Prevents Interruptions in Operation.
• Cycle Data Storage: Historical Cycle Data Is Stored and Easily Retrievable Via Usb.

The Steri Vertical Steam Sterilizer Platinum Model Offers Advanced Automation, Precision Engineering, and Robust Safety Features to Deliver an Unparalleled Sterilization Experience. Ideal for Professionals Seeking Reliability, Efficiency, and Ease of Use, This Model Is the Ultimate Choice for High-Pressure, High-Vacuum Sterilization.

Process Control and Other Features:

1.    Automatic Control System:

• The Machine Is Equipped with Automatic Control System by Pre-Programmed Plc.

2.  Operation System:

• The Machine Is Capable of Running in Automatic Mode Via 4.7” Colour Touch Screen (Hmi).
• Optional:- Manual Operating System Will Be Provided at an Extra Cost.

3.   Pre-Progammed Cycles:

The Sterilizer Has Equipped 6 Pre-Programmed Cycles as Mentioned Below:

• A) 4 Sterilization Cycle
• Instrument Cycle
• Liquid Cycle
• Fabric Cycle
• Customer Variable Cycle
• B) 2 Test Cycle
• Bowie Dick Test Cycle
• Leak Test Cycle

4.  User Customizable Cycle:

• The Machine Having User Variable Cycle Will Allow User to Customize the Temperature Settings, Pressure Settings and Vacuum Pulse Settings.

5. PASSWORD PROTECTION:

• a) The sterilizer settings are password protected.
• b) The date and time settings are password protected, and User is able to update date and time settings on the screen for better record keeping.

6. AUTOMATIC DETECTION AND ALARM SYSTEM:

The Machine will be equipped with following automatic detection systems:

• a) Door lock detection system: in case, if the doors are not closed properly the user will be notified.
• b) Temperature detection system: and the user will be notified in case the machine fails to reach the set temperature or if the temperature overshoots.
• c) Automatic Pressure Detection and Maintenance: Chamber and Jacket pressure is maintained automatically and in case the pressure fails to reach the set value of if it drops the user is visually notified.
• d) Water Detection System: The user will be notified in case the water level is not optimum for regular machine operation.
• e) Automatic Electricity Economizer: Once the temperature is reached or water level is not at optimum level the sterilizer will automatically cut off the heater system to save electricity and maintain temperature.
• f) Vacuum Lock Detection System: this system detects the time and total vacuum generated chamber if in case it detects any issue the user is visually notified. The equipment is also capable of detecting steam and air leakage.
• g) Power Cut Cycle retention and management system: the machine is equipped to deal with any power outages and based on the duration of the power outage the user will be notified.

7. PRINTER:

• a) The user is record the progress of the sterilization cycle in real time therefore online real time printing facility will be provided.
• b) The user can print the following details:

Date and time of the cycle.

Status of the cycle.

Temperature at drain and chamber pressure at every event change and during sterile hold it can be printed at desired interval, minimum of 1 minute.

All undesired situation (faults) are to be printed at the time of fault generation.

Optional:- Printer will be provided at extra cost with this model.

8. CYCLE DATA STORAGE FACILITY:

• Historical cycle data gets stored in the memory of sterilizer which can be easily retrieved at will through USB.

9.  STAINLESS STEEL 304 TRIPLE WALLED CONSTRUCTIONS:

• a) Triple walled design with mineral wool insulation for prevention of burn to users.
• b) Top quality stainless steel 304/316 construction including piping to avoid corrosion and contamination of.

10.     QUICK HOT AIR DRYING SYSTEM:

• Specially designed drying valves have been provided to ensure each load comes out completely dry.

11.     STATE OF THE ART – VACUUM SYSTEM:

• Vacuum is a must for optimum steam penetration & drying of sterilization load. Our STERI vertical steam sterilizer is equipped with cutting edge vacuum which sets us apart from our competition.
• Optional:- Vacuum pump available at extra cost.

12.     AUTOMATIC LOW WATER CUT OFF SYSTEM:

• The machine is equipped with automatic low water cut-off system. When the water level decreases below a threshold then heating elements will automatically turn off. The user will be notified in case the water level is not optimum for regular machine operation.

13.     AUTOMATIC PRESSURE CONTROL SYSTEM:

• The sterilizer has automatic pressure control switch which automatically maintain the desired pressure and restricts any abnormal/ unsafe rise of pressure in the sterilizer.

14.     EXTRA PORT FOR CALIBRATION AND VALIDATION:

• The sterilizer is equipped with external port for the sterilizer calibration and validation.

15.     WATER LEVEL INDICATOR:

• The sterilizer is equipped with water level gauge glass to indicate the water level.

16.     AIRTIGHT SEALING:

• Heavy Duty branded silicon gasket will be provided for airtight seal.

17.     PNEUMATIC VALVE:

• The sterilizer is equipped with branded pneumatic valves for automatic process.

18.     ANALOGUE GAUGES:

• a) The Sterilizer is fitted with branded NABH calibrated analogue chamber pressure (Compound) gauge to measure the pressure and vacuum of chamber.
• b) The Sterilizer is fitted with branded NABH calibrated analogue jacket pressure gauge to measure the jacket & boiler pressure.

19.     DIGITAL TEMPERATURE INSICATOR:

• The Sterilizer is fitted with digital temperature indicator to indicate the chamber temperature in manual mode.

20.     EUROPEAN STYLE OUTER COVER:

• The sterilizer is fully covered with SS 304 panelling on all sides for complete protection.

21.     SAFETY FEATURES:

21.1   EMERGENCY STOP:

• An Easily Accessible emergency stop is provided on main control panel door.

21.2   POWER FAILURE:

• Equipment settings will not get disturbed due to power failure and will not restart without human intervention.

21.3   FAILURE MODE DETECTION:

• Equipment indicate fault through audio / visual signal with details on Control panel/PLC (Failure mode detection).

21.4   AUTOMATIC SHUT OFF VALVE:

• Prevents hazardous leakage of hot steam and boiled water due to breakage of glass tube.

21.5   HYDRAULIC  TESTING:

• Complete sterilizer including chamber, jacket, and piping are hydraulically tested at 2 times the working pressure.

21.6   VACUUM BREAKER:

• The sterilizer is fitted with vacuum breaker system to prevent collapsing of jacket due to vacuum formed by condensation of steam.

21.7   SAFETY VALVE:

• The sterilizer is fitted with spring loaded dual safety valves.

21.8   INSULATION:

• The sterilizer is completely insulated to prevent any burns caused due to accidental contact to sterilizer body.
