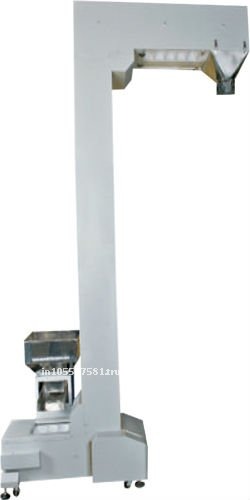

Z Shaped Bucket Conveyor

Listing Description This conveyor is used for feeding conveying the product material to be packed from floor level to packaging machines hopper.
Detailed Description
For Snacks, Grains, Granuals, Seeds Feeding.
This conveyor is used for feeding conveying the product material to be packed from floor level to packaging machines hopper. This ensures complete protection of product from breakage, from effect of atmosphere, dust, insects etc.
This conveyors can be attached to five packaging machines for feeding same material to all machines or otherwise individually to each Machine.
Bucket Size :
125 (w) X 400 (b) X 65 (h) mm.
Conveyor Height :
2800mm.
Material Drop Height :
2500mm.
Output :
Up to 90 bucketsmin.
Bucket material :
Made of moulded food grade pp with fine finish to obtain nonstick property.
Side chains :
Made of SS - 304 with nylon rollers.
Other contact parts :
SS -304.
Material feeding :
Through vibratory feeder and controlled by level sensor.
Bucket Releiver :
Pneumatic bucket releiver for from packing machine, when used for multiple machines or mechanical reliever for individual machine.
Motor :
2 Hp, 3 Ph, Geared Motor. It facilitates very easy removal and mounting of the buckets for cleaning.
It is an intact system for feeding of material from vibratory feeder to the machine hopper. And hence it protect product from moisture, dust, insects etc.
