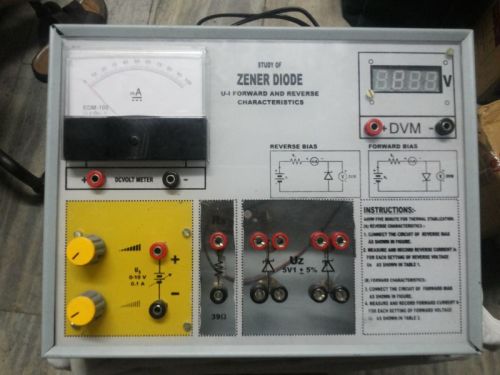

Zener Diode Characteristics

1. All the parts requried are gathered sepratly. 2. No hotchpotch of wires asthe experiment will be nicely done with patch cord. 3. A regulated 10v (100ma) power supply provided to perform experiment i.e no changof in observation any time you do experiment.the result will be the same. 4. The power supply is shortcircuit protected. 5. Two 5.1volt zener diode has been provided to do experiment. 6. With this kit anyone can perform experiment with in five minutes. 7. Results may differ due to non linearty of the analogue meter; the problem will be eleminate by using digital meter.
