Rajdeep's Telescopic Chute is designed for loading bulk material on trucks, containers, trains, ships, inside storages. The Equipment is composed of inner cones or cylinders that contain the flow of material and an outer flexible bellow which limits the spread of dusts.
Telescopic Chute greatly helps in containing dust thereby helping the environment to remain clean and dust free. To further improve the dust control feature, Rajdeep also manufactures Telescopic Chute having integrated connection with Dedusting system or bag filters.
Features:
Applications:
Telescopic chute having applications in many sectors, some of them are as follows:
RAJDEEP influential in providing our clients with custom designed Pug Mill or Ash Conditioner. In order to provide the clients with quality products, RAJDEEP manufacture this using high-grade material.
RAJDEEP's Ash Conditioner is used in many industries primarily for 'pollution control, mixing of water with powdered material' applications. The Ash Conditioners are made of abrasion-resistant bolt-on paddles which insure maximum wear life. The Ash conditioner is fabricated in Carbon steel, SS304 with a rigid base frame with a removable cover plate that provides easy access to internal section. It also houses anti-friction roller bearing support shafts and split type bearing that has dust seals.
RAJDEEP's Ash Conditioners are highly useful in Steel Plants, Ferro alloys, thermal power plants and sponge iron industry, as they return the recovered dust to the process in a closed circuit. The conditioner effectively blends dust recovered from such equipment as bag Filters, ash silos and bag houses thus allowing transport without the particulate matter escaping into the air.
SALIENT FEATURES:
APPLICATIONS AREAS:
Additional Information:
Delivery Time : 4-5 weeks
Many processes required that precise quantities of ingredients be brought together to make up a specific batch or formula. This typically involves metering materials individually into a weigh hopper using a metering device such as a screw feeder, airlock, or butterfly valve.
Through many years of experience, Rajdeep has developed a unique control package, designed specifically for bulk materials. Each ingredient has fast & slow speed feed, automatic target weights set, and auto log. Multiple weigh hoppers, or loss-of-weight feeders, may also be used to formulate the batch. Liquid addition scale systems are also provided.
Electronic batching controls are custom designed for ease of operation and flexibility utilizing the latest technology available. Commercial programmable logic controllers (PLC's) are used for system management and ease of operation. A multitude of options are available for batching systems.
Features of Auto Weighing and Batching systems:
Benefits of auto weighing and batching systems:
Automated weighing and batching system are good for small as well as large operations. These can pay for itself fairly rapid through amplified productivity, more-accurate quantity of ingredients (resulting in better product quality), minimization of product loss and dirt, and decrease in the cost of materials developed in larger containers and/or volumes.
Various equipment used in weighing & batching system
Additional Information:
Delivery Time : 4-5 weeks
Rajdeep offer the best solution for storing & handling of Grain. The flat-bottom silos are with large diameter & capacity which is popular with its easy installation & low cost. Complete System consists of Galvanised Corrugated Silo as a container with equipments such as Bucket elevator, Chain conveyor, and Precleaning system.
Associated System:
Additional Information:
Delivery Time : 4-5 weeks
features:
salient features:
applications:
note:
Additional Information:
Payment Terms : L/C, T/T
Delivery Time : 4-5 weeks
RAJDEEP offers modern Rotary Airlock Valve designs as a discharger, pneumatic feeder, batch feeder.
Features:
Salient Features:
Applications:
We are a prominent Manufacturer, trader and Exporter of the optimum quality array ofBoiler Centrifugal Fan.
Additional Information:
Delivery Time : 4-5 weeks
We are a prominent Manufacturer, trader and Exporter of the optimum quality array of Jumbo Bag Unloading Station.
Additional Information:
Delivery Time : 4-5 weeks

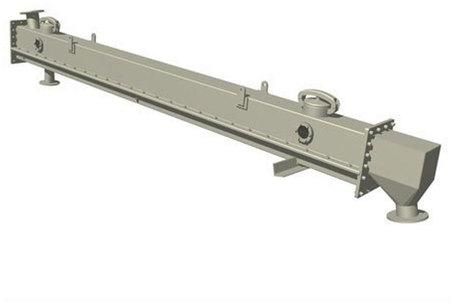

RAJDEEP's AIR SLIDE will quickly and efficiently convey all fluidisable materials such as cement, fly ash. The simple combination of air pressure and gravity allows powdered materials to flow like a fluid. Air slide are very efficient, quiet and no moving parts. AIR SLIDE are extremely cost effective and require very little maintenance The Air slide consists of a rectangular chamber separated by a permeable cloth. The chamber is inclined at a very slight angle (as low as 1.5 ). Pressured air is injected into the lower chamber which then permeates through the media and "fluidizes" the product. The product then behaves like a fluid and "flows" down the length of the chamber. The excess air is vented through a dust collector
Salient Features :
Applications :
Additional Information:
Delivery Time : 4-5 weeks

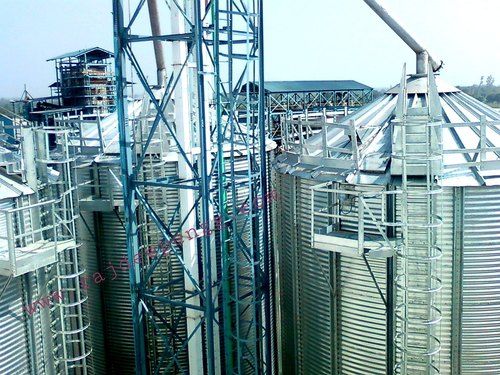

Rajdeep has established a solid reputation as an industry leader in providing engineered solutions for the automation of bulk solids handling. Our grain & malt handling systems curtail dust, boost yields, and often pay for themselves in under a year.
Broad background in supplying Distillery & brewery plant (Solid Handling)
Our System comprises of following sections.
Grain pre-cleaning and storing section. (Mechanical/ pneumatic handling)
Grain unloading from storage silo (Mechanical/ pneumatic handling)
Grain Cleaning & Milling System. (Mechanical)
Grain Flour Handling System ((Mechanical/ pneumatic handling)
System Involved In Grain Handling System:
Grain Unloading: Involves receiving hopper with magnetic grill and bucket elevator.
Grain Storage: Storage silos with feeding arrangement and sweep auger and chain conveyor for discharge.
Grain Cleaning: Involves pre-cleaner (vibratory screen) separating oversize and undersize impurities, Destoner for removing stones and magnetic drum separator for removing iron particles.
Grain Milling: Involves rotary feeder for controlled feed, hammer mill to achieve desired particle size and capacity. Hammer mill discharge arrangement with screw conveyor, rotary screen for coarse separation.
Flour Handling: Involves mechanical or pneumatic conveying, screw conveyor, bucket elevator, rotary valves with roots blowers.
Flour Storage: Flour storage silo is provided with bin activator for a smooth discharge. Silo is provided with level switches high and low and load cells for weighing/automation.
Flour weighing and batching: Weight controller and totalizer for automation and to know the flour consumption. Unique equipment called Pre-masher is used for metered feed of flour and water to get uniform slurry for liquefication
Equipments Used For Grain Handling
Bucket Elevators: Bucket elevators are so designed that the all types of Grain is handled very gently by adequate sizing of the speed and the bucket sizes.
Rotary valves below silo: Rotary valves are so designed that they operate at very low speeds. A special anti-jamming device is provided at the entry of the valve.
Vibratory screen: A vibratory screen screens all grain and removes the physical impurities of larger size.
Magnetic separator: A magnetic Separator separates any of the metallic (Iron particles) material entering with the grains.
De-stoner: De-stoner separates the equal size stones from the Grains. It is provided with special aspiration system to keep the material in loosened condition.
Hammer mill: Hammer Mill grinds the grains to the desired fineness and discharges it into a screw conveyor. Grinding capacity 0.3 - 1 mm
Screw conveyor: A screw conveyor conveys the material (grain or flour) to the bucket elevator feed spout or any other destination
Pre-masher: For intimate mixing of grist with hot water before entry to the mash vessel in mash Conversion.
Control panel: A dedicated control panel caters to the full automation of the plant and user-friendly operation.
Grain Silo: Rajdeep offer the best solution for storing & handling of Grain. The flat-bottom silos are with large diameter & capacity which is popular with its easy installation & low cost. Complete System Consists of GIC Silo as a container with equipments such as Bucket elevator, Chain conveyor, and Cleaning system.
With in-house engineering, fabrication, and service, our Grain Handling and Milling System come with industry’s highest quality and lowest cost of ownership.
Rajdeep has specialized in the design, manufacture of Screw Conveyor.
Salient Features:
Applications:
Additional Information:
Delivery Time : 4-5 weeks
RAJDEEP manufactures & supply a wide range of Centrifugal Fans as a product for Industrial Material Handling Systems, ID Fan for Dust Collection Systems. Our product range includes Induced Draft Fans and Forced Draft Fans to meet the specific requirements of the applications. Customers are easily available with wide range of the High Pressure Centrifugal Fans as per the specifications confirming to the international standards at RAJDEEP.
To serve the operational requirements, RAJDEEP developed special high efficiency fans with backward curve impeller. These fans are made available to the clients at cost-effective prices. RAJDEEP's Centrifugal Fans are available in carbon steel, SS 304 / SS304L / SS316 / SS316L in industrial or sanitary finishes.
RAJDEEP also manufactures Axial Fans.
SALIENT FEATURES :
Applications :
Additional Information:
Delivery Time : 4-5 weeks
RAJDEEP has specialized in the design, manufacture and installation of Screw Conveyors.
Salient Features :
Applications :
Additional Information:
Delivery Time : 4-5 weeks

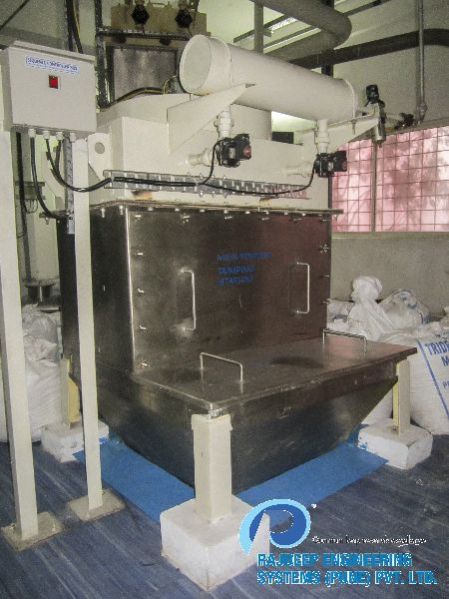

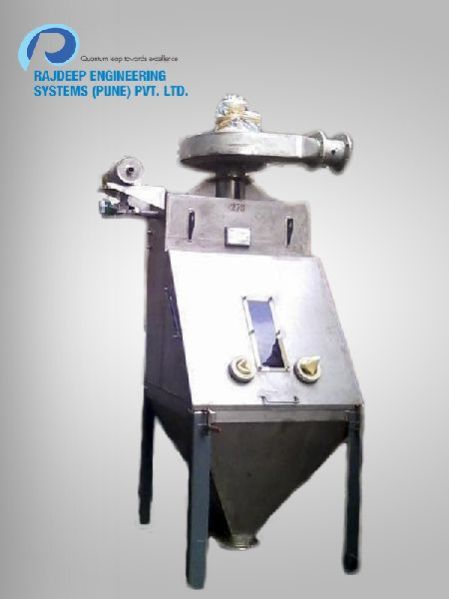

RAJDEEP'S bag dump stations (also known as manual dumping stations) collect dust generated when dumping powder and bulk solids from bags, boxes, drums, and other containers, and return the material to the hopper. The system absolutely eliminates material waste, also protecting workers from dusting during material charging and preventing plant contamination. RAJDEEP's bag dump station have feature of a high-velocity vacuum fan that draws airborne dust away from the operator through two or four cartridge filters that are sized according to the application.
OPERATION:
Customized to your process
The hoppers of RAJDEEP's bag dumping stations are available in various configurations for simplified connection to pneumatic conveyor lines, screw conveyors, Mixer Charging, reactor feeding and virtually any process equipment. RAJDEEP's bag dump station are available in carbon steel with durable industrial finishes or in SS 304 / SS304L / SS316 / SS316L in industrial or sanitary finishes.
SALIENT FEATURES :
Applications :
Additional Information:
Delivery Time : 4-5 weeks
RAJDEEP provides VENTURI EDUCTOR for conveying materials.
These works on the principle of reducing the pipeline cross sectional area in the region where the material is fed from the supply hopper. There are no moving parts in this feeding device which has certain advantage with regards to wear problems. No Air leakage in opposition of material feed.
A consequence of the reduction in flow area is increase in the entraining air velocity & corresponding decrease in the pressure in the region
These feeders are usually incorporated in systems that are required to convey free flowing materials at low flow rates.
Venturi Eductor mainly comprises of
Salient Features of Venturi Eductor
Venturi Eductors are used to feed bulk solids such as powders, powdered spices, pellets, flakes, rubber crumb, Styrene Butadiene Rubber and particulates having low bulk density, into Lean phase conveying systems
Eductors are attractive to install below other solids processing equipment because, by creating suction at the product inlet, they enable dust-free material conveying systems.
These are commonly installed beneath:
Cyclone separators separate dust from gas streams using a combination of forces, such as centrifugal, gravitational, and inertial. These forces move the dust to an area where the forces exerted by the gas stream are minimal. The separated dust is moved by gravity into a hopper, where it is temporarily stored. Cyclone separators are use for cyclonic action to separate dust particles from the gas stream. In a typical cyclone, the dust gas stream enters at an angle and is spun rapidly. The centrifugal force created by the circular flow throws the dust particles toward the wall of the cyclone. After striking the wall, these particles fall into a hopper located underneath. Cyclone separators create a dual vortex to separate coarse from fine dust. The main vortex spirals downward and carries most of the coarser dust particles. The inner vortex created near the bottom of the cyclone, spirals upward and carries finer dust particles.
Advantages of Cyclone Separator:
Limitations of Cyclone Separator:
Applications Areas:
Additional Information:
Delivery Time : 4-5 weeks
RAJDEEP manufactures lump breakers for dry powder de-agglomeration, reducing scrap product, or compacted, lumpy, and hard friable materials from Feed Hoppers, silos, bags or bulk sacks. RAJDEEP's Rotary Lump Breaker is a heavy duty mill that is simple to maintain, and trouble free. It is designed for cost-effective, rapid, in-line de-agglomerating of dry powders, or situations where high speed and high horsepower are not required. It is available in a variety of materials such as carbon steel, SS304 and SS316 stainless steel and in sanitary finish.
Salient features:
Applications Areas:
Additional Information:
Delivery Time : 4-5 weeks
Rajdeep's in house scrubber range for Air Pollution Control is comprehensive, enabling selection of the most cost effective solution to any dust control or air cleaning problem, large or small. Systems are designed, manufactured and supplied as turnkey installations with the most widely used being the Dynamic scrubber. The Dynamic Scrubber offers >99.5% dust collection efficiency in the 1-2 micron range. It is ideally suited to general dust collection on medium to high dust loads. Fan Scrubber- Rajdeep also offer fan scrubbers for mineral applications. Advantages- -proven design. -very low cost for high efficiency. -high energy efficiency. -integral self cleaning fan. -low maintenance. -low water consumption.
Additional Information:
Delivery Time : 4-5 weeks
Rajdeep offer the best solution for storing & handling of Grain. The flat-bottom silos are with large diameter & capacity which is popular with its easy installation & low cost. Complete System consists of Galvanised Corrugated Silo as a container with equipments such as Bucket elevator, Chain conveyor, and Precleaning system.
Associated System:
Grain Silo comprises of:
Storage Capacity:
Main Featrures of Flat Bottom Silo
Additional Information:
Delivery Time : 4-5 weeks
RAJDEEP offers Ribbon 'U' Blender/ Cone Mixer blenders to facilitate mixing of solids with solids with high efficiency. Mixers are generally used for mixing & homogenizing of powders, pastes & slurries. Addition of liquids into dry solids, granulation or agglomeration of powders by the addition of a binder liquid, crystallisation cooling or heating. This is a Powder Handling System with special features. This mixer blender is often used to mix foods, chemicals, pharmaceuticals, household products, plastics, and minerals.
Salient features:
Application:
Additional Information:
Delivery Time : 4-5 weeks
