Details

• Inlet valves and outlet valves seal off the combustion chamber and control the charge exchange process in the engines. Valves are mechanically, highly strained components which are additionally subject to corrosive influences
• The outlet valve is additionally heated by the passing hot exhaust gases during outlet clock opening. The valves are cooled down mainly by conducting heat via the valve seat insert to the cylinder head.
• The smaller proportion of the heat is conducted via the valve guide to the cylinder head. Inlet valves reach temperatures of approx. 300 °C to 550 °C, outlet valves can get up to 1, 000 °C
• The Engine Valves are made up of heat resistant alloy.
• Various processes like Chrome flash on Stem Satellite on seat and tip area, Nitriding / Tuft riding are offered.
• The machining of outer diameter and radius of engine valves are processed on CNC Machine.

Production Capacity

• 10000 pieces per month
• *Believe in Quality not Quantity.

Types of Valve
Intake Valve

• Mono-Metal valve
• Bimetallic valve
• Bimetallic valve with seat armoring

Mono-Metallic ValveMono-metallic valves are only made from one material. For this, one material is chosen that is suited to both requirement profiles, namely high heat resistance and good sliding properties.

Exhaust Valve

• Mono-metallic valve
• Bimetallic valve

Bimetallic valveBimetallic valves enable material combination of a highly heat resistant agent (headpiece) with a skirt material which can be hardened on the one hand (skirt end) and also has good sliding properties for valve guidance. The materials are combined through friction welding.

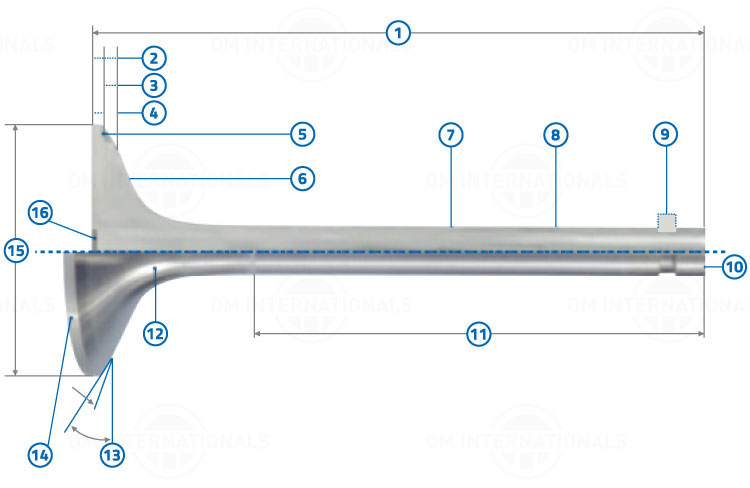

Dimensions & Technical Terms

• Total Length
• Total Valve head thickness
• Seat Height
• Height of valve seat face
• Seat Mourning
• Valve Head
• Skirt diameter
• Valve stem
• Groove diameter
• End face of stem (hardened)
• Grinding length
• Throat
• Valve seat angle
• Head surface
• Head diameter
• Culotte

Valve guide. Valve guide. Ci casting Valve guide. Brass Valve guide. Engine Valve guide. Truck Valve guide. Valve guide manufacturers. Valve guide export.

Other Products

• The valve guide has the task to absorb the transverse forces which affect the valve stem.
• The valve guide centers the valve on the valve seat insert and conducts a proportion of the heat from the valve head, via the valve stem to the cylinder head.
• Due to this extreme strain, for the valve guides mainly the material and its properties are a decisive factor for the product quality.

Production Capacity

• 30000 pieces per month
• *Believe in Quality not Quantity

MaterialsValve guides are made of materials with good gliding and thermal conductivity properties. Grey cast iron and brass materials with selected alloy components have been particularly proven.
