Our Products

We offer the best product range of Twin Head Weigher, Fully Automatic Cup Filler and Twin Head Weigher Former Type.

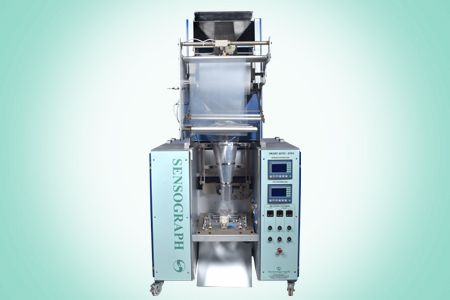

Twin Head Weigher

Twin Head Weigher
  • TECHNICAL SPECIFICATION:           Model
  • SP- 02 Forming type
  • Collar Gramage
  • 10-100g
  • 50g- 1 kg Roll width  (mm)
  • 170-530 mm Pouch length (mm)
  • 75 to 330 mm Vertical seal width ( mm)
  • 10/15 typical Horizontal seal width (mm)
  • 10/15 typical Speed (PPM)
  • 8-14 DPM * Output
  • 42 to 450 kg/hr. Hopper
  • 1no Pan
  • 2nos Vibratory feeder
  • 2no Delivery chute
  • 1no Floor area
  • 23 sq.ft Power supply
  • 1 phase,230 VAC Air supply
  • 2 HP, 8 bar pressure, 2CFM Serration and cutting
  • Count cutting provided, count to be fed through HMI Control of FFS
  • Through micro controller Eye mark controller
  • Provided. Process parameter setting
  • Through HMI Film draw mechanism
  • Through Steeper/ servo motor Horizontal sealing mechanism
  • Pneumatic Vertical seal mechanism
  • Pneumatic Material of construction

The material feeding system is weighmatric means it feed the material to the pouch by weighing. The actual weight of the material is displayed on the 5 display provided on the front panel. Depending upon the output requirement, one can choose number of heads of the weighing system. The roll feeding is made easy in this machine. The quick changeover of Collar makes it useful for medium scale packing requirement where frequent change of material & pack size is essential.

This machine is suitable for packing of :

  • Best suited for packing of irregular shaped products such as potato chips, extruded food, banana chips, cheese balls, bakery products homogenous fine grained products such as tea powder, seeds, sugar, whole spices etc.
  • Homogenous coarse grained products such as rice, wheat, pulses, Sabudana etc.
  • Coarse products such as cashew nuts, almond, pistachio, whole spices, etc.
  • Mix products such as namkeen, farsan, etc.
  • Industrial products such as lugs, screws, nails, bolts, nuts, etc.
  • Especially suited for Poha ( Rice Flakes), Murmure, corn flakes, candies, etc.
  • Pharma products such as capsules, tablets, etc.

Features:

Virtually maintenance free 24*7 operation

User friendly HMI

Self-learning software eliminate tedious settings

Eye mark controller for perfect positioning of seal & cut

Provision for batch printing system

No of pouches produced count batch wise/day wise.

Collar type forming system for elegant pouches

Leak proof sealed pouches assured through special vertical sealing method.

Strip cut / single cut system provided

Provision of nitrogen flushing provided.

Benefits:

Flexibility of operation and production

Accurate and repetitive weighment

Low Power consumption

Virtually all kind of granules products are handled by single machine.

View Complete Details
Ask Latest Price & Details
Fully Automatic Cup Filler

Fully Automatic Cup Filler
  • Optional Attachments :
  • Batch coding device  (Print or embossed)
  • Gas flushing
  • Take- off conveyors

Our company is among the most sought after offeringCup Filling Machineto the clients. Cup Filling Machine is manufactured by a team of dexterous professionals and by using modern tools and advance technology in strict compliance with quality norms and standards. Offered range can be avail in different specification as per necessities of clients. This product is appreciated for long life and weather resistance. Offered range extensively demanded in various industries such as industrial and commercial. This product is properly checked by expert quality controllers on different parameters.

It provide cost effective, flexible packaging solution for business big and small.

We offer machines that pack 30 80 pouches per minute. We offer Optional Attachments with products such as:

  • Batch coding device (Print or embossed)
  • Gas flushing
  • Take- off conveyors
  • Adjustable disc

Features:

  • Tough construction
  • Quality approved
  • High performance
  • Cups of varying sizes can be changed out within
  • Easy installation
  • Less operating cost

Applications:

  • Detergent Powder Packing Machine
  • Mehandi Powder Packing Machine
  • Camphor Packing Machine
  • Mouth Freshener (Mukhwas) Packing Machine

Particulars SP2ATC52 SP4ATC100
Roll width (mm) 60 – 250 200 – 430
Pouch length (mm) 150 300
Vertical seal width (mm) 10 typical 15 typical
Horizontal seal width (mm) 10 typical 15 typical
Speed (PPM) 60 -80 15 – 30
Pack size (Grams) Feb-50 200 – 1000
Output (kg/hr) 20 – 120 15 – 60
Dimension (Floor Area) 30 sq ft
Dimension (Height) 10.5 ft
Power Supply
Air supply
Film Draw mechanism (Puller) Servo Drive Servo Drive
Horizontal sealing mechanism Pneumatic Pneumatic
Vertical seal mechanism Pneumatic Pneumatic
View Complete Details
Ask Latest Price & Details
