Shakti Mining Equipments Pvt. Ltd.

Ambad, Nashik, Maharashtra

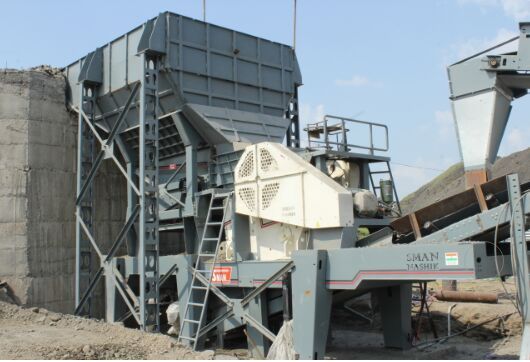

A jaw crushers is a crushing machine designed considering a primary stage crushability for materials such as rock, mineral, ROM and building rubble. jaw crushers design focuses on compression type crushing with feed of material being received from the top of the crushing chamber that consists one side fix and other movable type cast manganese jaw liners, the moving jaw is fixed on a pitman which is connected to an eccentric shaft creating an elliptical motion while moving to and fro hence generating an inertia to perform crushing through compression. A jaw crushers assembly basically consist of body, headstock, toggle support, pitman, bearing housing and flywheels. SMAN crushing equipments such as jaw crushers, cone crusher, vertical shaft impact (VSI), sand washing plant, wheel mounted plant are globally well accepted & regularly exported to Gulf region like Oman, United Arab Emirates (UAE), Saudi Arabia along with African countries like Kenya, South Africa, Angola, Zambia, Ethiopia, Botswana, Ghana, Malawi, Namibia, Uganda, Tanzania, Mozambique, Madagascar, as well as Asian countries like Sri Lanka, Bhutan, Nepal and several other parts of the world.All four main bearings are of equal diameter & larger size for optimum performanceSingle piece cast steel bearing housings offer high load carrying capacities & ease of maintenanceForged steel, hardened & Precision machined crank shaftRing feeders fitted to lock flywheels with the shaft result in quick & easy dismantling at the time of maintenance.Modular body design proves to be much more economical for recondition of the crusher even after long years of operation as compared to other traditional designsEasily replaceable machined & bolted jaw stopper plates for maintenance free operationDynamically balanced cast iron flywheels offer long bearing lifeHeavy duty cast steel Pitman

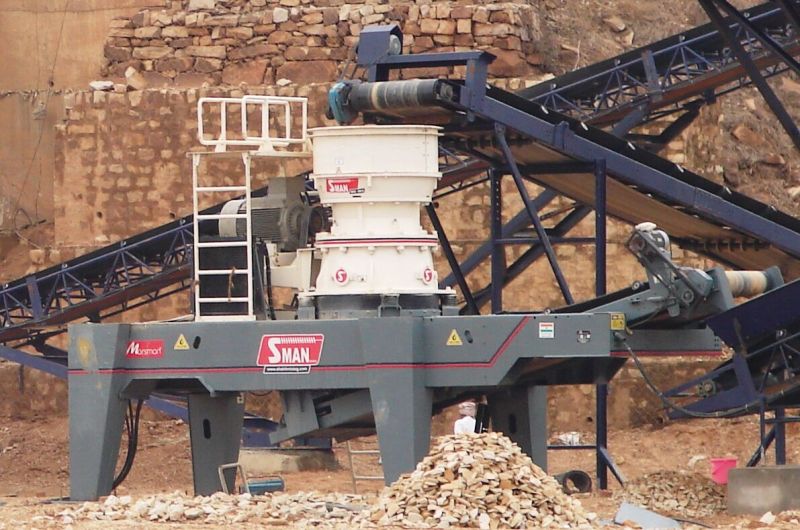

Cone Crusher is a crushing machine designed considering the secondary stage crushability for materials such as rock, mineral, ROM and building rubble. Cone crusher design focuses on compression type crushing with feed of material being received from the top in crushing chamber that consist of concave and mantle made up of high manganese alloy. The Cone crusher is operates via electric motor that drives a horizontal shaft & pinion bevel gear further rotating a crown bevel gear mounted on an vertical eccentric sleeve creating a gyratory motion that affects the centre axle fitted inside the sleeve creating a compression crushing action between the Mantle & concave section. As the mantle moves, it crushes the material against the concave at the points where the gap is smallest. This rotating motion of the Cone crusher reduces the size of the material as well as improves the shape.

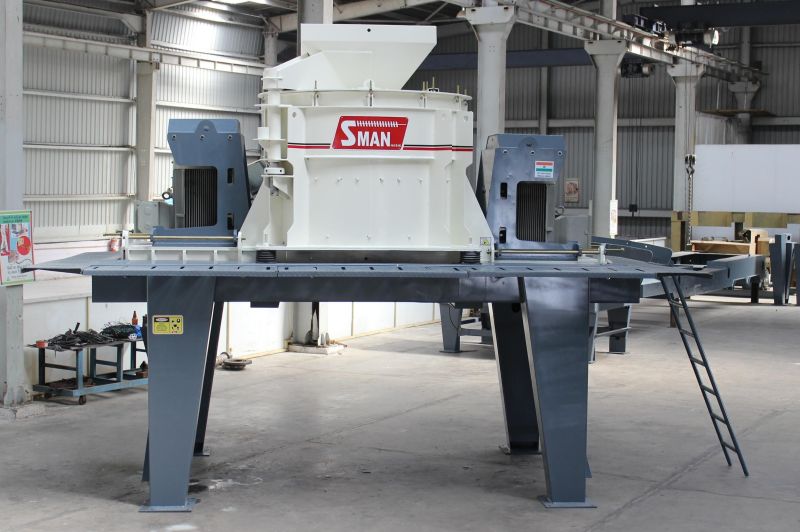

Ready to use structure. Quick Installation, Immediate operation ( wheel mounted mobile option is also available )Variable production capacity for tertiary stage materialRock on technology ensures minimum operating costs along with least wear & tear.Shape of output material is cubical & exellent for concretingLow investment. Low downtime for replacement of parts & consumables.V Easy retrofit option for conversion from rock on rock to rock on metal.HOW Vertical Shaft Impactor (VSI) WORKS The Machine Mechanism of vertical shaft impactor (VSI) is simplified. The material to be crushed is dropped on top chute & goes through material tube on to center of closed rotor. Material from rotor gets thrown with high centrifugal force as the rotor rotates on high rpm. when this material hits inside the Rock chamber assembly it gets shaped due to impact & depending on inertia of the material cubical shaped products falls freely due to gravity through the bottom chute.The natural way of impact & grinding of Rock on Rock results in shaping the particals like natural sand making it very close natural sand.

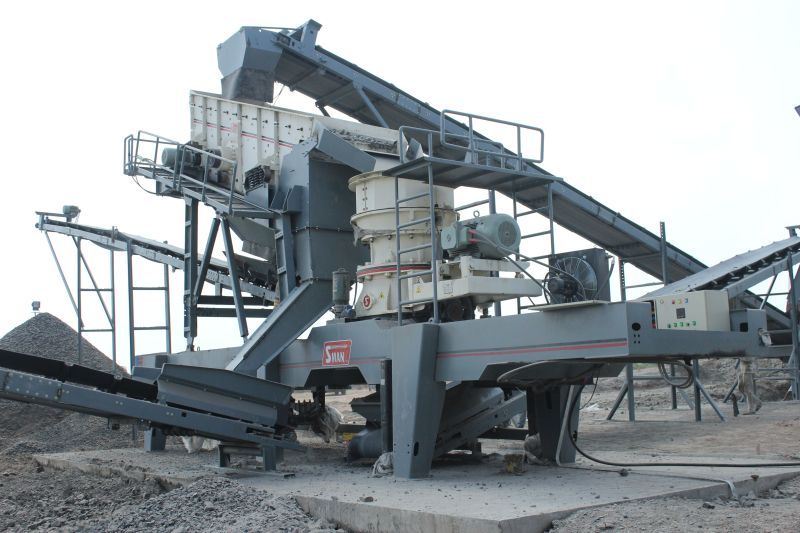

material is fed to the crusher via a vibratory feeder that is fitted with a grizzly section & a by-pass chute that directs the intermediate and fine fractions to the discharge conveyor located beneath the crusher The electrical panel is mounted on to the skid enabling easy maintenance access. The heavy duty steel fabricated skid with the optional mobile attachment reduces the need for building heavy concrete foundations & ensures quick installation & dismantling of the equipments for inter site movements. To ensure maximum operator safety and access, the operators platform has handrails and access ladder from the ground. Safety guards are fitted to the main drive and around the crushers flywheels All of these features are aimed at producing high quality aggregates, yet the simple & effective design contains many advanced features that give versatility, mobility & ease of operation.

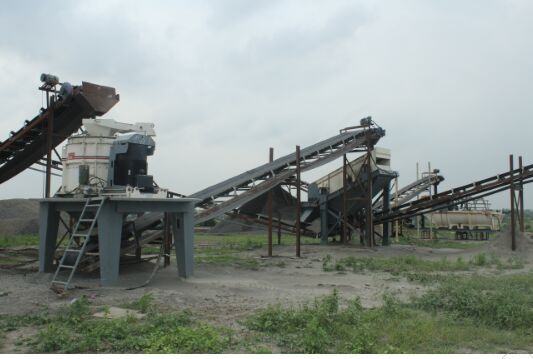

Artificial sand is a better alternative solution for natural river sand to protect the natural sand for balancing the nature and society. Nowadays construction industries are booming day by day thus artificial sand is required by construction companies for new building constructions. We offer best quality of mining equipments having higher mechanism to produce artificial sand with high productivity structure within short time span and lowest cost, which indirectly makes impact on quality of the ready mix concrete, artificial sand, asphalt mix, base material for road work. Artificial & Plaster Sand Making Machine features easy maintenance and low operating cost to increase production of artificial sand in proportion. Artificial & plaster sand making machine with constant performance, easy operation, high efficiency and easy maintenance is recently used in construction and mining industry.

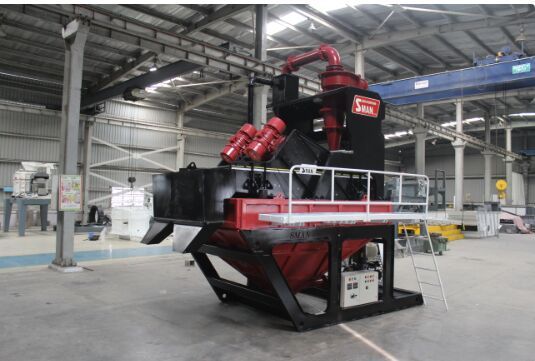

Sand washing machines are specialized equipment used in construction, mining, and industrial processes to clean and separate sand from dirt, clay, and other unwanted particles. These machines improve the quality of sand used in construction and other applications. Types of Sand Washing Machines 1. Wheel (Bucket) Sand Washer 2. Spiral Sand Washer (Screw Washer) 3. Hydrocyclone Sand Washer 4. Dewatering Screens

A heavy duty single toggle primary jaw crusher specially designed to handle large size lumps with a specific elliptical motion crushing theory achieves the required output gradations & serves as the most economical & robust machine for coal application. SMAN Primary coal station are most suitable for crushing coal at a mine wherein there is substantial percentage of hard & abrasive rocks present in natural coal & since a jaw crusher is basically designed to handle much harder minerals & ores, crushing coal is never challenging task for such a machine

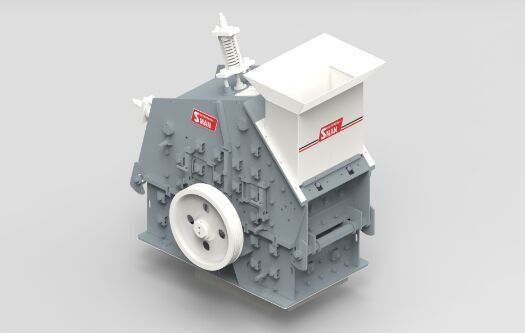

SMAN Impactor coal crushing station are the ideal choice wherein high production capacity at a minimized downtime is required. Equipped with a very heavy duty indigenously designed primary type horizontal shaft impactor fitted with dynamically balanced four blade rotor & a specially designed two stage spring loaded impact liner wall system ensures maximized crushability & productivity. SMAN Coal impactor are most suitable for crushing coal at a mine wherein hard & abrasive rock are present in a limited quantity & occasionally come through in the primary feed material. SMAN Primary impactors are designed considering such a feed & can handle it making them an ideal choice wherein high productivity is targeted.
