Our Products

  1. Milling Machines 1 Products available
  2. Others Products 13 Products available

Our Products

Leading Manufacturer, Supplier & Retailer of Vertical RAM Turret Milling Machine, 40 Mm Cap. Double Column All Geared Radial Drilling Machine, 40 Mm Cap. Single Column All Geared Radial Drilling Machine, 25 Mm Cap. Pillar Drilling Machine and 32 Mm Cap. Pillar Drilling Machine.

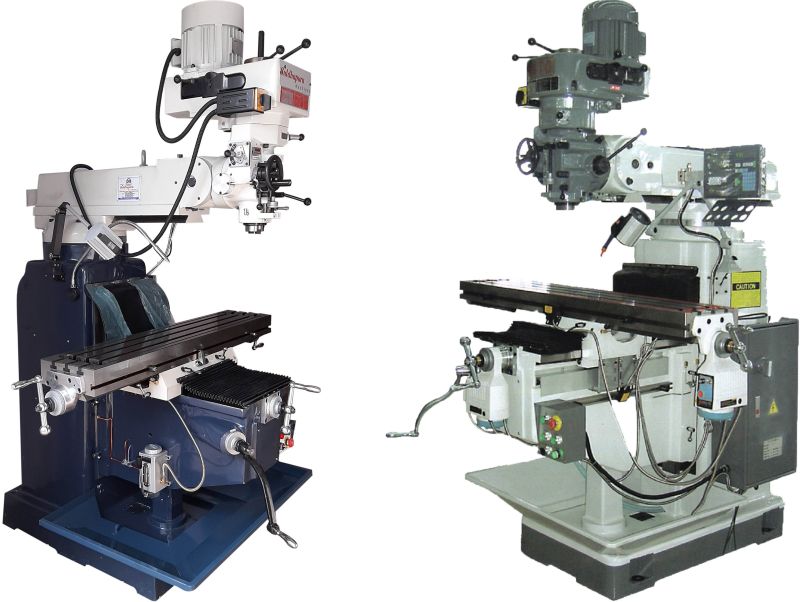

Vertical RAM Turret Milling Machine

Vertical RAM Turret Milling Machine
  • Travelling X: 750mm, Y: 400mm, Z: 400mm
  • T-Slot 3 & 16mm
  • Table Size 1270 X 254mm
  • Spindle Taper ISO-30
  • Material Steel
  • Color Grey
  • Packaging Wooden Crate
  • Usage Metalworking
  • Power Source Electric
  • Voltage 220V
  • Weight 2000 Lbs
  • Dimensions 60
  • Warranty 1 Year
  • Ram Travel 590mm
  • Quill Travel 127mm
  • Distance Spindle To Table 430mm
  • Distance Spindle To Column 700mm
  • Spindle Speeds (LOW) 66 To 2270RPM
  • Spindle Speeds (HIGH) 130 To 4540RPM
View Complete Details
Ask Latest Price & Details

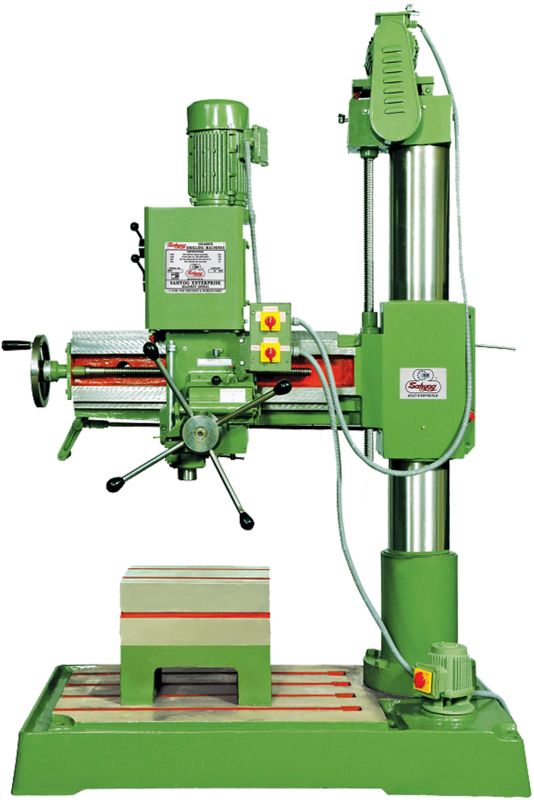

40 Mm Cap. Single Column All Geared Radial Drilling Machine

40 Mm Cap. Single Column All Geared Radial Drilling Machine
  • Material Steel
  • Capacity 40mm
  • Spindle Travel 220mm
  • Speed Range 80 To 1265 RPM
  • Power Source Electric
  • Weight 1500kg
  • Country of Origin China
  • Spindle Feed Hand Fine / Auto Power
  • Auto Feed Range 0.08 To 0.04mm/rev
  • Max Drilling Radius 895mm
  • Min Drilling Radius 440mm
  • Max Distance Column To Spindle 820mm
  • Min Distance Column To Spindle 310mm
  • Usage Metalworking
  • Control Type Manual
  • Model GRD-40
  • Warranty 1 Year
View Complete Details
Ask Latest Price & Details

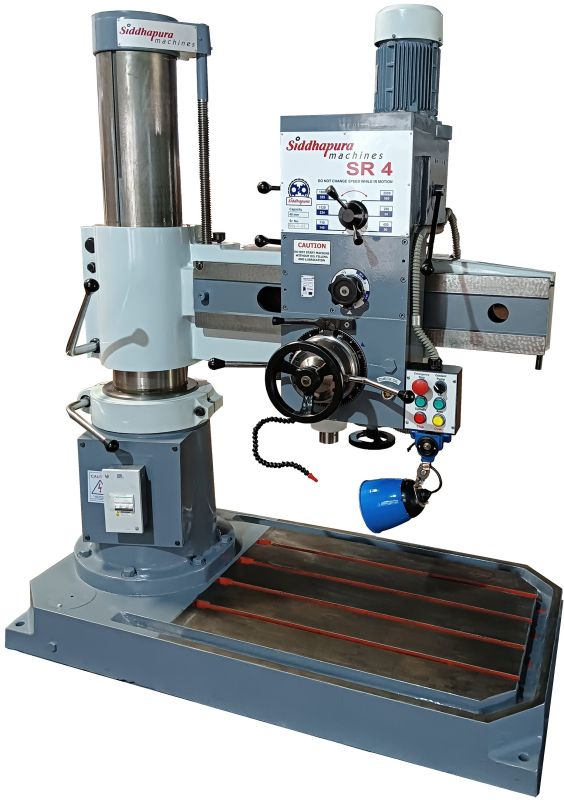

40 Mm Cap. Double Column All Geared Radial Drilling Machine

40 Mm Cap. Double Column All Geared Radial Drilling Machine
  • Material Mild Steel
  • Capacity 40mm
  • Tapping Capacity M-27
  • Color Grey
  • Packaging Wooden Crate
  • Power Source Electric
  • Speed Range 50-2500 RPM
  • Weight 1500 Kg
  • Voltage 220V
  • Type Radial Drilling Machine
  • Drill Head MT-4, 220mm, 12, 56 To 2800RPM, 6, 0.030 - 0.310mm/Rev.
  • Working Range 225mm, 900mm, 345mm, 800mm, 232mm, 950mm, 440mm
  • Usage Metal Drilling
  • Dimensions 2000mm X 1000mm X 2500mm
View Complete Details
Ask Latest Price & Details

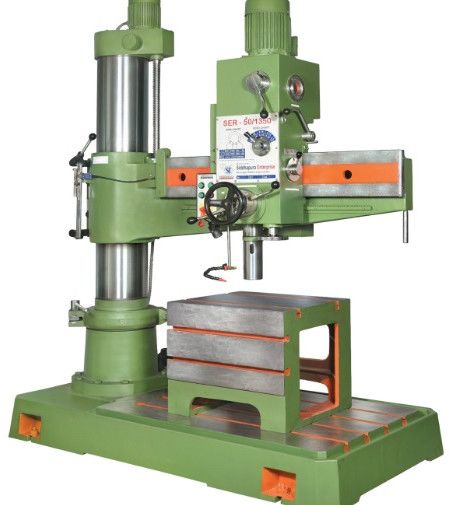

50 Mm Cap. Double Column All Geared Radial Drilling Machine

50 Mm Cap. Double Column All Geared Radial Drilling Machine
  • Tapping Capacity M-25
  • Boring Capacity 90 Mm
  • Spindle Nose Taper MT-5
  • Spindle Travel 300 Mm
  • Material Steel
  • Color Grey
  • Packaging Wooden Crate
  • Power Source Electric
  • Voltage 220V
  • Weight 1500 Kg
  • Drilling Capacity 50 Mm
  • Spindle Diameter 85 Mm
  • No Of Spindle Speeds 8
  • Spindle Speed Range 30 To 1300 RPM
  • No Of Quill Feeds 6
  • Quill Feed Range 0.06 To 0.5 Mm/rev.
  • Usage Metalworking
  • Dimensions 1500 X 800 X 2000 Mm
  • Warranty 1 Year
View Complete Details
Ask Latest Price & Details

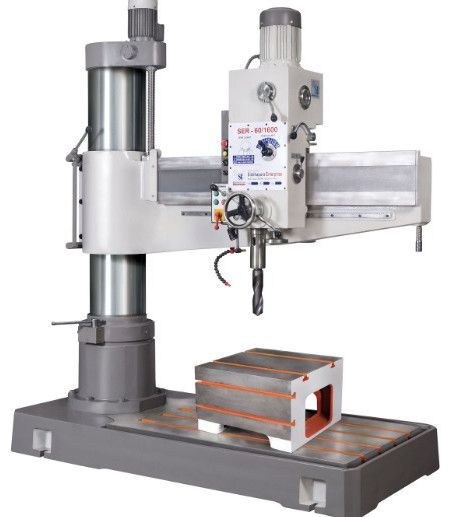

60 Mm Cap. Double Column All Geared Radial Drilling Machine

60 Mm Cap. Double Column All Geared Radial Drilling Machine
  • Spindle Travel 340 Mm
  • Boring Capacity 90 Mm
  • Tapping Capacity 48 Mm
  • Spindle Nose Taper MT-5
  • Column Diameter 350 Mm
  • Drilling Radius Max./Min. 1700 / 500 Mm
  • Distance From Column To Spindle Center Max./Min. 1525 / 325 Mm
  • Distance From Base To Spindle Nose Max./Min. 1500 / 500 Mm
  • Horizontal Traverse 1200 Mm
  • Vertical Traverse 850 Mm
  • Base Plate Working Area 1500 X 920 Mm
  • Material Steel, Iron, Aluminum
  • Packaging Wooden Crate, Cardboard Box, Plastic Wrap
  • Power Source Electric, Pneumatic, Hydraulic
  • Weight 500kg, 700kg, 900kg
View Complete Details
Ask Latest Price & Details

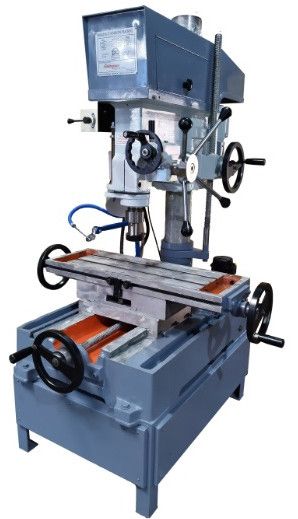

Drilling Cum Milling Machine

Drilling Cum Milling Machine
  • Drilling Capacity 40mm
  • Face Milling Capacity 60mm
  • End Milling Capacity 25mm
  • Tapping Capacity M-22
  • Spindle Travel 170mm
  • Column Diameter 114mm
  • Spindle Nose MT-4
  • Working Surface 725 X 250mm
  • Distance From Spindle Centre To Column Surface 280mm
  • Max Distance From Spindle Nose To Table Surface 555mm
View Complete Details
Ask Latest Price & Details

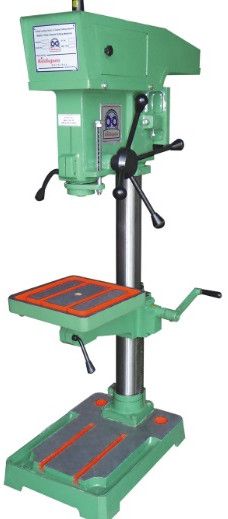

20 Mm Cap. Pillar Drilling Machine

20 Mm Cap. Pillar Drilling Machine
  • Spindle Travel 130 Mm
  • Column Diameter 74 Mm
  • Distance From Spindle Center To Column Surface 200 Mm
  • Max. Distance From Spindle Nose To Table Surface 650 Mm
  • Range Of Spindle Speed 85 To 3200 RPM
  • Table Size 270 X 270 Mm
  • base size 245 X 440 Mm
View Complete Details
Ask Latest Price & Details
25 Mm Cap. Pillar Drilling Machine

25 Mm Cap. Pillar Drilling Machine
  • Spindle Speed 8, 75 To 1970 RPM
  • Drilling Capacity 25 Mm
  • Tapping Capacity M-16
  • Spindle Travel 250 Mm, 150 Mm
  • Column Diameter 92 Mm
  • Spindle Nose MT-3
  • Distance Spindle To Column 250 Mm
  • Max Distance Spindle To Table 650 Mm
  • Max Distance Spindle To Base 950 Mm
  • Table Size 330 X 330 Mm
View Complete Details
Ask Latest Price & Details
32 Mm Cap. Pillar Drilling Machine

32 Mm Cap. Pillar Drilling Machine
  • Spindle Speed 8 Speeds, 75 To 1970 RPM
  • Spindle Travel 250 Mm
  • Column Diameter 105 Mm
  • Spindle Nose MT-4
  • Distance Spindle To Column 365 Mm
  • Max Distance Spindle To Table 650 Mm
  • Max Distance Spindle To Base 970 Mm
  • Table Size 400 X 400 Mm
  • base size 465 X 730 Mm
  • Overall Height With Guard 1730 Mm
View Complete Details
Ask Latest Price & Details
40 Mm Cap. Pillar Drilling Machine

40 Mm Cap. Pillar Drilling Machine
  • Spindle Speed 8 & 75 To 1970 RPM
  • Distance Spindle To Column 385 Mm
  • Max Distance Spindle To Table 650 Mm
  • Max Distance Spindle To Base 970 Mm
  • Table Size 400 X 400 Mm
  • base size 465 X 730 Mm
  • Overall Height With Guard 1730 Mm
  • V Belt Section B-64
  • Power Supply 1.5 Hp 3 Phase 1440 RPM
View Complete Details
Ask Latest Price & Details

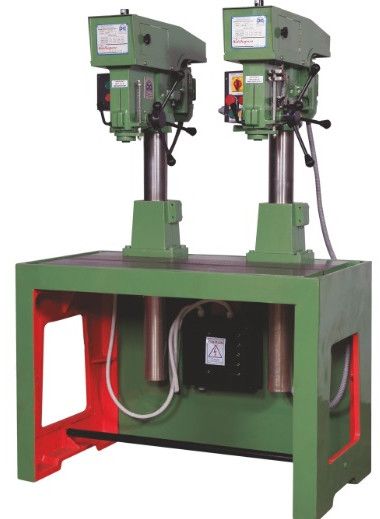

Gang Drilling Machine

Gang Drilling Machine
  • Distance Between Two Units 400mm
  • Center Between Two Units 560mm
  • Center Of Spindle To Column 190mm
  • Taper In Spindle MT-2
  • Spindle Travel 125mm
  • Range Of Speed 85 To 3200RPM
  • Table Size 1100 X 600mm
  • Working Surface Of Table 965 X 360mm
View Complete Details
Ask Latest Price & Details
25 Mm Cap. Radial Drilling Machine

25 Mm Cap. Radial Drilling Machine
  • Spindle Travel 200 Mm
  • Number of Spindle Speeds 8
  • Range Of Spindle Speed (RPM) 80-1800 RPM
  • Main motor power 1Hp., B-45 V-belt
  • Arm Elevating Motor Power 0.5Hp., A-19 V-belt
  • Working Table Dimensions 275 X 205 X 205 Mm
  • Drilling Radius Min./Max 365/720 Mm
  • Distance From Column To Spindle Min./Max 300/655 Mm
View Complete Details
Ask Latest Price & Details
38 Mm Cap. Radial Drilling Machine

38 Mm Cap. Radial Drilling Machine
  • Capacity 38mm
  • Spindle Nose MT 4
  • Spindle Travel 220
  • Range Of Spindle Speed (RPM) 62-1980
  • Range Of Power Feed 0.08-0.04 (SER-II)
  • Main motor power 1.5Hp., B-46 V-belt
  • Arm Elevating Motor Power 0.5Hp., A-23 V-belt
  • Working Table Size 380 X 300 X 300
  • Working Range - Drilling Radius Min./Max 440/895
  • Distance From Column To Spindle Min./Max 360/810
View Complete Details
Ask Latest Price & Details
